Air Valve Fittings Electric Actuator Central Air Conditioning System Motor Electric Valve Air Valve Actuator Damper Actuators on/off Type Electric Damper Actua

Product Description

Ningbo Star Win Actuators Manufacture Co.,Ltd has focused on top quality HVAC parts for over 30 years in China. We started as a transmission parts, stamping parts factory, but now have become one of the leading suppliers of the air damper actuators in the HVAC field in China.

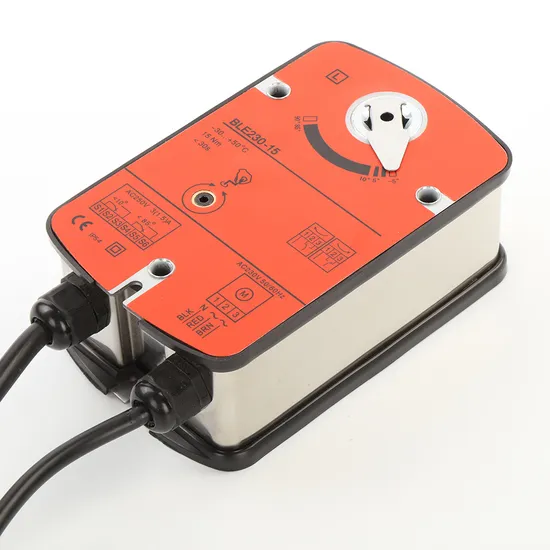

We now have the 5Nm spring return electric damper actuator(analogy BLF), the 15Nm reverse electric damper actuator( analogy BLE), the 6Nm, , 10Nm, 16Nm, 25Nm, 40NM on/off type electric damper actuator(analogy NM, LM, SM, GM), and 6Nm, 10Nm, 24V modulating electric damper actuator( analogy NM) and some other manual actuator.
For we are born of machinery parts factory, all the damper actuators parts are made by our own, the quality and delivery time can be controlled well, and keep our cost lower, to help you source the reasonable price actuator to win the market well.

TS05 5Nm Spring Return On/Off type damper actuators	Power supply			AC/DC24V, AC230V
	Allow error			10%
	Allow error			15N.m
	Run time(Motor drive)			50...70S
	Spring Return Time			15...20S
	Operating power			6...8VA
	Standstill power			3VA
	Output angle			90°(95°Max)
	Control signal TS...			2point on/off control
	Universal coupling			7-12mm(squ) or Φ10-Φ16mm(cir)
	Overload protection			Automatic
	Protection class			IP54
	Ambient conditions			-10ºC ~+55ºC 0-99%Rh
	Noise level(max)			Motor< 45dB(A)
	Noise level(max)			Spring return< 62dB(A)
	Weight			1.8...2.2Kg

---
