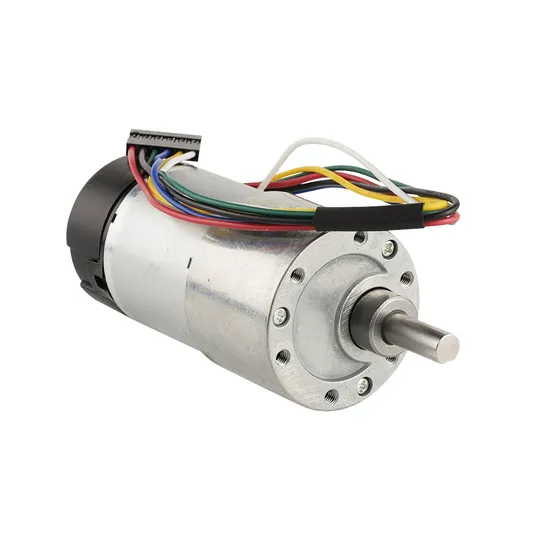

6V 12V High Torque 37mm AC DC Electric Worm Gear Motor Gearmotor Reducer Electricial Geared Motor with 64CPR Encoder for Robot

US$6.50
10-99 Pieces
US$4.50
100+ Pieces

Basic Info.

Model NO.
37D
Excitation Mode
Excited
Function
Driving
Casing Protection
Open Type
Number of Poles
2
Structure and Working Principle
Brush
Type
Z2
Certification
RoHS
Brand
Xinhe Motor
Gear Motor
Spur Gear Motor
Brush
Metal Brush
Diameter
37mm
Voltage
6V 12V 24V
Speed
5rpm~3000rpm
Gear Ratio
10~830:1
Encoder
64CPR Encoder
Rosh
Yes
CE
Pass CE
Noise
Less Than 40dB
Power
20W
Weight
0.3kg
Packing
Carton
Lead Time
15days
Payment
Tt & Paypal
Transport Package
Cartons
Trademark
XINHE MOTOR
Origin
China
HS Code
8501109990
Production Capacity
20000/Month

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
0.200kg

Product Description

Product Description High Power version with 5A stall current:5A
With 64CPR encoder or not 64CPR ;
With back shaft or not.
With metal brush or carbon brush.
Model Voltage
Unit: VDC		 No load speed
Unit: rpm		 Noload current
Unit: mA		 Stall torque
Unit: kg.cm		 Gear ratio
37D306-EN 12V 1760 rpm 250mA 3.9 kg.cm 6.25:1
37D3010-EN 12V 1100 rpm 250mA 5.5 kg.cm 10:1
37D3019-EN 12V 585 rpm 250mA 9 kg.cm 18.75:1
37D3030-EN 12V 365 rpm 250mA 15 kg.cm 30:1
37D3050-EN 12V 220 rpm 250mA 21 kg.cm 50:1
37D3070-EN 12V 157 rpm 250mA 31 kg.cm 70:1
37D30100-EN 12V 107 rpm 250mA 45 kg.cm 102:1
37D30131-EN 12V 83 rpm 250mA 55 kg.cm 131.25:1
37D30168-EN 12V 65 rpm 250mA 70 kg.cm 168.75:1
37D30270-EN 12V 40 rpm 250mA 70 kg.cm 270:1
37D30506-EN 12V 21 rpm 250mA 70 kg.cm 506.25:1
37D30810-EN 12V 13 rpm 250mA 70 kg.cm 810:1
