316 Stainless Steel Advanced Automatic V -Type Food Pharmaceutical Grade Granule Powder Pellet Mixer Mixing Machine

Product Description

Product Description

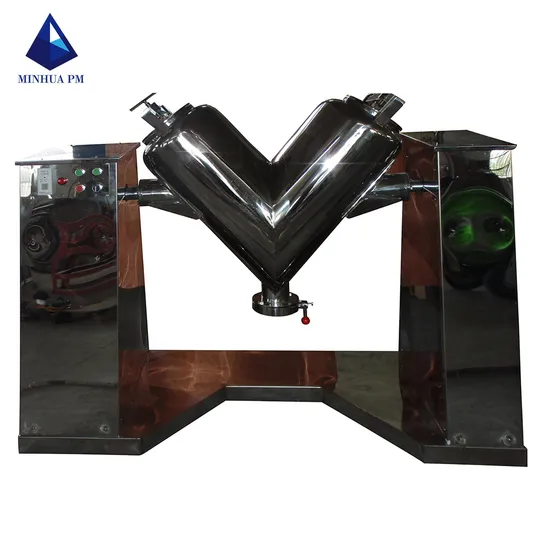

This machine has the following distinguishing features, no blind eagle in the cylinders, no accumulation of materials, high speed, and short mixing time. With the body made of stainless steel and both inner and outer walls polished, the cylinders have elegant appearance. The charging of materials can be made either by manual operation or through vacuum suction. For discharging, rotating valves and rapid swivel heads are adopted. This mixer is applicable for mixing powdery or granular materials in pharmaceutical and other industries. It consists of two V-type cylinders of different altitudes, and through mechanical transmission the materials in these cylinders are made to move back and forth and turn over again and again, thereby achieving the goal of uniform mixing
Detailed Photos
Product Parameters

Type	Barrel Capacity (L)	Feed Volume coefficient	Max Feed weight (KG)	Agitation speed(r/min)	Mix with time (min)	Motor Power (kw)
VH-2	2	0.4	0.6	28	6-8	0.04
VH-5	5	0.4	1.5	24	6-8	0.25
VH-8	8	0.4	2.5	24	6-8	0.25
VH-14	14	0.4	4	20	6-8	0.37
VH-50	50	0.4	15	12	6-8	0.75
VH-100	100	0.4	28	12	6-8	1.1
VH-200	200	0.4	55	12	6-8	1.5
VH-300	300	0.4	80	12	6-10	1.5
VH-500	500	0.4	140	12	6-10	2.2
VH-1000	1000	0.4	300	12	6-10	3
VH-1250	1250	0.4	375	10	6-10	3.5
VH-1500	1500	0.4	450	10	6-10	4

Packaging & Shipping
Company Profile
Shanghai Zixiong Pharmaceutical Machinery Company established in 2010,is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment such as tablet press machine,capsule filling machine,liquid filling machine,soft and hard blister packing machine,tablet or capsule counting and filling production line,soft-gel production line etc.
Shanghai Zixiong Pharmaceutical Machinery Company located in Shanghai, China where is about 30 minutes by car from Hongqiao train station or Hongqiao airport, very easy to get to and naturally suited to communicate and trade with worldwide clients.
Shanghai Zixiong Pharmaceutical Machinery Company occupied ISO system and CE certificates, with a disciplined factory and fairly professional technical engineers.We have the capabilities to design and develop many types of machinery and equipment, also provide personalized customized service for you. Besides machinery and equipment, we also can supply a full set of production lines which specific based on you requirements. We welcome OEM and ODM orders.
Shanghai Zixiong has sold the products to all over the world for decades years, such as USA, Australia, Canada, UK, Russia, Germany, Sweden, Japan, Korea, India, Indonesia, Pakistan, Southeast Asia, Middle East, South America , Africa and so on.
We believe that quality of product is the soul of a company. With decade years to provide strict quality control and thoughtful customer service, Zixiong has rewarded with high customer satisfy and built up good reputation worldwide.
Shanghai Zixiong Pharmaceutical Machinery Company must be one of your best partner in the future, we are looking forward to receive your inquiry.
FAQ

---
