Large Capacity Split Case Agricultural Irrigation Centrifugal Water Pump

Product Description

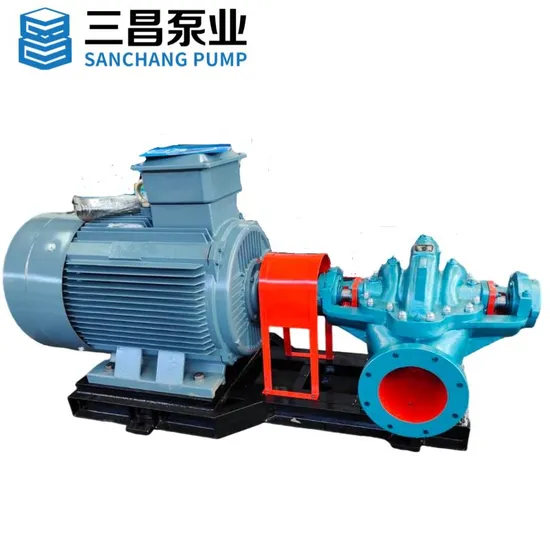

200S95 Split Case Centrifugal Pump Capacity 280m3/h Head 95m Agricultural Irrigation Water Pumps
Product Description
Brief introduction :
Horizontal split case pump is a type of centrifugal pump that has two single suction impellers or a double suction supported between bearings. The pump casing is split axially with opposing suction and discharge flanges. This allows for easy maintenance on the pump.Split case pump are typically used to carry low-viscosity liquids such as clear water and unsaturated wastewater from industrial processes at average heads. it can be applied for higher flow rate conditions that are not suitable for end suction pumps, such as fire pumps, portable water distribution, plant make-up water, pipelines, cooling water, and other industrial process flows with fairly thin fluids.
Features
Large flow capacity, high efficiency. Easy operation and maintenance. Long operational life- The life of the pump casing should extend to at least 30 years, with a pressure threshold of up to 10MPa. The location of the inlet and outlet flange of the split case pump can be custom placed upon request. The shaft, impeller, shaft sleeve, and sealing ring can be composed of a selection of different materials according to the working conditions, including cast iron, cast steel, and stainless steel (SS304, SS410, etc.). Seal method: machinery seal and packing seal varieties available. Performance Parameters:

Pump outlet diameter Dn	100~900mm
Capacity Q	72~20000m3/h
Head H	7~186m
Temperature T	0~80ºC

Material of flow passage components:
The S series Split case pump/Split casing pump/Double suction centrifugal pump could be customized with
different material, main material configuration followed :

Recommended Material Configuration (For reference only)
Item	Clean water	Drink water	Sewage water	Hot water	Sea water
Case & Cover	Gray iron (HT250)	S.S304	Ductile iron (QT500)	Cast Steel	Duplex S.S 2205
Impeller	Gray iron (HT250)	S.S304	Ductile iron (QT500)	2Cr13	Duplex S.S 2205
Wearing ring	Gray iron (HT250)	S.S304	Ductile iron (QT500)	2Cr13	Duplex S.S 2205
Shaft	C.S 45	S.S420	40Cr	40Cr	Duplex S.S 2205
Shaft sleeve	C.S 45	S.S304	S.S304	S.S304	Duplex S.S 2205
Remarks: detailed material list will according to liquid and site conditions

Structure Diagram :
Application

Split Case Centrifugal Pump for Chemical Factory	Split Case Centrifugal Pump for Salt Chemical Factory	Split Case Centrifugal Pump for Cycling Water
Multi-stage Split Case Centrifugal Pump for Mine	Multi-stage Centrifugal Pump for Power Plant	Multi-stage Centrifugal Pump for Chemical Factory

Company Profile
Workshop
Packaging & Shipping
FAQ
1.Delivery: Delivery time will be on time as the contact. Usually, the delivery time is of centrifugal pump is for 15-25 working days.
2.Warranty: 1 year for the pump body, 3 months for the main working parts.
3.Package:According to your quantity, we use plywood case which is durable for ocean transport.
4.Shipping: By Sea and By Air
5.Payment: We are accept T/T,L/C,West Union and so on.
6.Pre-sales Service:According to your requirement, we will give your our profession advice of pump solution.
7.On-sales Service:We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you order production situation.
8.After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if you need.

---
