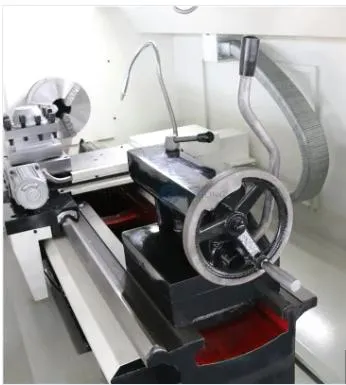

High Precision Ck6170 Horizontal CNC Metal Lathe Machine CNC Milling Machine 5 Axis

Product Description

Automatic CNC lathes automatically execute machining tasks through pre-programmed computer instructions, greatly reducing manual operation and improving production efficiency.
High precision machining CNC lathes use advanced control systems and high-precision sensors to achieve micron precision machining, ensuring consistency and high quality for each part. Diversified processing function CNC lathes support turning, boring, drilling, tapping and other processing operations, can complete the complex shape and structure of the parts processing.
Efficient production CNC lathe with high-speed rotation and fast feed function, shorten processing time, improve production efficiency, suitable for mass production.
Stability and reliability CNC lathe structure is strong, durable, stable operation, can work continuously for a long time, reduce equipment failure rate and downtime. Product Parameters

ITEM		UNIT	CK6170
General rule	CNC system		GSK
	Overall dimensions (One meter machine tool)	mm	3000*1700*1800
	Net weight	kg	2800
Scope of work	Maximum workpiece rotation diameter of bed body	mm	780
	Maximum machining length	mm	950
	The X axis	mm	560
	Maximum Z-axis stroke	mm	950
Bed	Width of bed rail	mm	490
	Maximum apex distance	mm	950
Spindle	Spindle head type		C11
	Taper of spindle inner hole		Metric No. 90 (1:20)
	Main shaft aperture	mm	105
	Spindle speed	rpm	Three speed variable frequency, stepless speed change in gear, 45-260140-800280-1600
	Spindle motor power	kw	15
	Manual three - jaw collet dimensions		Manual three jaw chuck 500
Servo shaft	X/Z ball screw		2505/4010
	X /Z axis motor power	nm	10/15
Working accuracy	Fast feed speed	m/min	6;8
	Positioning accuracy	mm	X axis ≤ 0.01 Z axis ≤ 0.015
	Repeated positioning aocuracy	mm	X axis s 0.01 Z axis ≤0.01
	Roundness	mm	≤ 0.07
	Consistency in diameter	mm	≤ 0.03/Length 300
	Flatness	mm	≤ 0.02/Diameter 300
	Surface roughness (Steel parts)	nm	<Ra1.6

---
