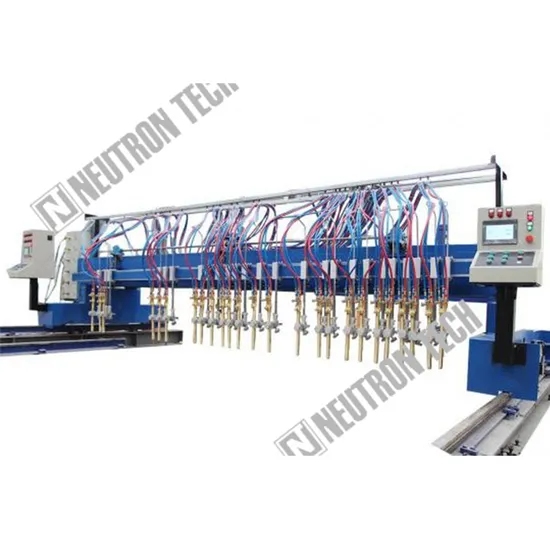

CNC Gantry Type Flame Cutting Machine

Product Description

Product parameters
With several flame torches equipped, strips flame cutting machine is characterized of stable running and high effi ciency, can be widely applied for strips cutting of carbon steel, manganese steel and other materials.Multi-cutting torches and CNC heterotypic torch system can be customized accordingly, also, automatic height adjusting system.
Strcture:
The beam adopts Germany Messer technology; gantry type frame, eliminate the structural torsional moment better, beam is box type structure, not rectangular tube steel, after welding, use annealing treatment to eliminate internal stress, the deformation does not occur in the years of use
Cutting torch lifting rack for torch automatic lifting.
The mechanical transmission system is through precision rolling bearings and the meshing of class 7 precision gears and racks.
The drive system adopts planetary reducer, the input /output error is only 16 minute of arc, at the same time, in the transverse/ longitudinal gear transmission structure, increases the device of automatic compensation gap, so that the transmission structure can accurately perform the directives issued by the Cnc system.
Drive end beam: longitudinal rail clamping device adopts automatic guiding structure, not the eccentric wheel clamping structure, by the spring force of the automatic guide structure, making it steady running on two tracks, no clamping wheel tight, partial loose phenomenon, its leverage ratio is 1:3.
All equipment spare parts are of black, electroplating and other surface treatment.
Machine is sand blasting and primer spray, face paint using orange peel paint, color is blue or yellow.
Product display
Product sample
Certifications
Company information
Our company is specialized in different kinds of products. We stick to the principle of quality first, service first, continuous improvement and innovation to meet the customers for the management and zero defect, zero complaints as the quality objective. To perfect our service, we make our products with good quality at the reasonable price. The main products are high-speed railing molding equipment, U-shaped column forming equipment, iron tower processing equipment, steel structure processing equipment, sheet processing equipment, flange forming equipment, flame cutting machine, plasma cutting machine, laser cutting machine, hollow glass aluminum spacer Production line, hollow glass warm edge strip production line, furniture production line, CNC engraving machine, hollow aluminum strip, hollow sealant, etc. Its products are widely used in road and bridge construction, construction steel structure, electric power tower, automobile manufacturing, furniture manufacturing, decoration and decoration industries.
Packing & Shipment
FAQ:
Q1 :How about warranty?
A1:2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q2:2 I don't know which one is suitable for me ?
A2:Please tell me your
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness::choose most suitable power.
Q3:Do you have documents for customs clearance?
A3:Yes,we have.At first we will show you and And after shipment we will give you Packing list/Commercial Invoice/Sales contract/Bill of lading for customs clearance.

---
