Product Description
Product Description

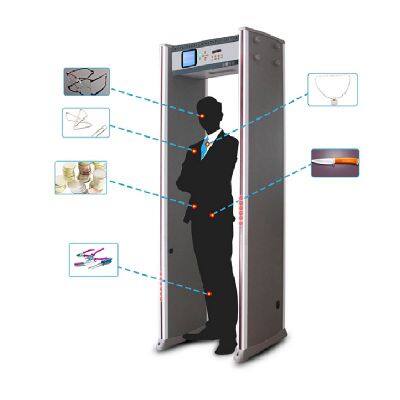

Security checkpoint metal detection door
Security checkpoint metal detection door
Product advantage 1: Adjustable sensitivity in each area
Each detection location has 256 sensitivity levels (0-255), with pre-set metal item sizes to eliminate false alarms such as coins, keys, jewelry, belt buckles, etc
Product Advantage 2: Safe and Harmless
Harmless to pacemakers, pregnant women, magnetic floppy disks, magnetic tapes, etc. in the human body
Product Advantage 3: Widely Used
It can be widely used for close range scene monitoring, such as schools, hospitals, stations, airports, shopping malls, cinemas, and other scenarios.
Accurate positioning: Divided into 18 overlapping network detection areas, with double-sided transmission and reception, it can accurately locate the detected object and visually display the position of the target object.
Vertical external dimensions; 2200MM(L)X820MM(W)X500MM(H)
Vertical channel size: 2010MM (L) X710mm (W) X500MM (H)
Gross weight: 58KG
Working voltage: 220V/50HZ
Alarm duration: 1 second
Working frequency range: 4KHZ-8KHZ
Working environment temperature: 0 ℃~65 ℃
Accuracy range for location detection of metal objects: maximum sensitivity>6g metal
Installation steps
Easy installation takes 8 minutes to complete, with 8 bolts securing the crossbeam and door panel. Simply plug in the power and it's ready to use.
1. Open the packaging box.,
2. Remove the security door panel and the main unit from the packaging box.
3. Place the detection door flat on the ground and install the probe plug.
4. Fix the 8 bolts on the door panel and insert the detection data cable.
5. After installation, turn on the power and the detection door enters the working state.
6. The testing personnel directly pass through the lightning free stop.
