Bohai Hot Sale Glazed Profile Roll Forming Machine / Tile Forming Machine / Roof Forming Machine Made to Order

Product Description

Product Description

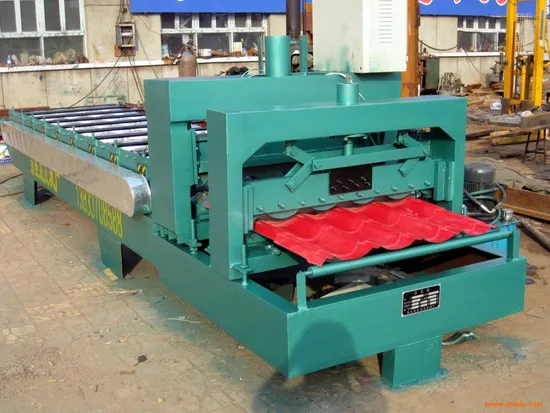

BH Glazed Tile Roll Forming Machine
Technical Parameter

Production Name	BH Glazed Tile Roll Forming Machine
Specification of Rolling Material	1250×(0.4-0.8)×L,Yield Strength ≤250MPa
Working Speed	12-15m/min
Roller Steps	16 Steps
Frame of Machine	Welded with 350H Beam Steel
Thickness of Wallboard	16mm
Roller Material	Adopts Superior 45# Forged Steel with Hard Chromium Plated
Shaft Material	Adopts Superior 45# Forged Steel Quenching and Tempering
Main Shaft Diameter	¢70 mm
Main Motor Power	5.5KW
Hydraulic Station Power	4.0KW
Hydraulic Station Pressure	8 -12MPa
Electric Control System	Adopts PLC
Machine Size	7500x1700x1400mm

Work Flow
Profile Sheet
Related Production

Model	Feeding Width	Effective Width	Thickness Coil
BH-25.5-185-740	1000mm	740mm	0.3-0.8mm
BH-45-253-760	1000mm	760mm	0.3-0.8mm
BH-24-200-800	1000mm	800mm	0.3-0.8mm
BH-37-166-830	1250mm	830mm	0.3-0.8mm
BH-52-169-845	1000mm	845mm	0.3-0.8mm
BH-29-185-925	1000mm	925mm	0.3-0.8mm
BH-39-190-950	1000mm	950mm	0.3-0.8mm
BH-40-200-1000	1200mm	1000mm	0.3-0.8mm
BH-40-257-1028	1250mm	1028mm	0.3-0.8mm
BH-24-183-1100	1250mm	1100mm	0.3-0.8mm
BH-25-210-1122	1200mm	1122mm	0.3-0.8mm

Company Profile
Yingkou Bohai Machinary Equipment Manufacture CO. Ltd is a source factory who has over 20 year's experiences in this industry. All parts are produced by us, which can reduce the cost of the product, which also helps our prices to be very competitive in the market. Now we have professional technicians, advanced pruduct equipment in workshop, loyal exporting team and responsible aftersale service.
Photos With Customers
Certifications
FAQ
Q: Can you make the machine according to my design or photo type?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine according to your demand or photo type that you are going to book with us.Q: Are you a factory or trading company?
A: We are a factory located in YingKou city, LiaoNing Province, China. Our city is near Beijing. All clients from abroad and home are warmly welcome to visit our factory!Q: How do you guarantee the quality of the products?
A: Every section of our production has strict manufacture process, than professional inspectors check every section of the production, next the production will work for testing quality, which must be 100% quality assurance. Unqualified resolute don't a better factory.Q: What is your service?
A: We provide the technical support for whole life. Pre-sales service includes inquiry and design support and view our factory. After-sales service includes training how to instal the machine, training how to use the machine, and engineers available to service machinery overseas.
How to Cooperate with each other?

Step 1: Tell us your requirements.

Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative.

Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.

Step 4: Advanced payment and production.

Step 5: Factory examine goods/ rectify and reform to meet the requirements of contract.

Step 6: Balance payment and shipping.

Step 7: Handing shipping files to help clients get goods from transporter in time.

Step 8: Clients get goods and go into warranty time.

Step 9: Provide overseas service for clients.

---
