Valve Body Processing Special Machine Integrated Flexible Rotary Water Wheel Transfer Machine

Product Description

Our Advantages
-Provide one-stop turn-key solution, include but not limit to plant design, proposal, manufacturing, shipping, installation and commissioning services
-Long-term technical support, long-term machine warranty
-Over 20 years experience specialized in manufacturing melting& casting production line for brass copper and aluminum.
-Our machines have been export to over 40 countries.
Product Description

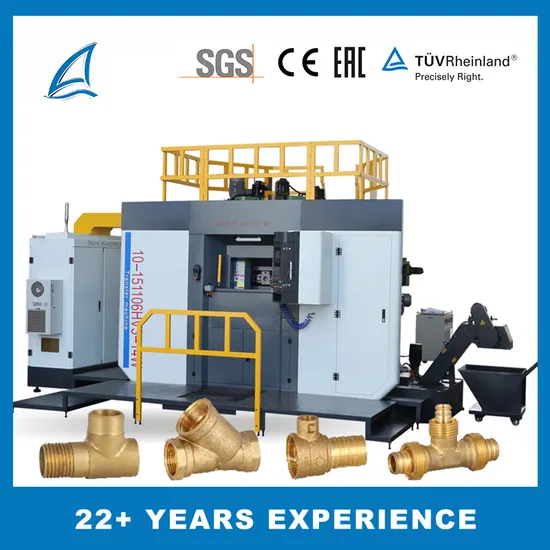

CNC Watermeter Machine

Suitable for mass production of complex parts in the small to medium size range, such as valve bodies, tee parts, pipe fittings and joints, etc. They are especially widely used in the plumbing valve, sanitary ware, refrigeration, and auto parts industries.


Machinable Copper Aluminum, Steel,Free Cuffing Steel, Cast iron parts And Other Materials
Why Choose CNC Watermeter Machine?

1, Servo drive: power head feed is usually controlled by servo motor, which ensures accurate position control and high dynamic response.
2, Multi-station synchronized machining: Through the waterwheel-type indexing structure, many different machining operations, such as drilling, tapping, milling, etc., can be performed on different parts of the workpiece at the same time.
3, High precision and stability: It can achieve high positioning and repeat positioning precision, such as tapping precision can reach 6H level, and equipped with intelligent monitoring system such as tool breakage detection.
4, High degree of automation: some models are equipped with automatic loading and unloading devices, supporting continuous automated production, reducing manual intervention and improving production efficiency.
5, CNC program control: digital program control is adopted, which facilitates flexible adjustment of process parameters to adapt to different products and batch requirements.

Main technical parameter			BM-110HV3-6WF			BM-110HV3-8WF
Spindle sleeve Specification			110*380 mm			110*380 mm
Range of spindle			Boring:1335r/min Tapping:556r/min Cutting:1335r/min			Boring:1335r/min ; Tapping:556r/min ; Cutting:1335r/min
Motor power			Cutting+boring:3kw*4p=3Pcs Tapping:2.2*6P=3Psc			Cutting+boring:3kw*4p=5Pcs Tapping:2.2*6p=3Psc
			Coolant:0.75kw*4p=1Psc Chip removal:0.2*4p=1psc			Coolant:0.8kw*4p=1Psc; Chip removal:1.18kw*4p=1psc
			Hydraulic pump motor:3.7kw*4p=1Psc			Hydraulic pump motor:3.7kw*4p=2Psc
Hydraulic oil specifications			Runliabao 46#F Antiwear hydraulic oil			Runliabao 46#F Antiwear hydraulic oil
Spindle shank Spcifications			BT-40			BT-40
Operating Voltage			3P-380VAC(50Hz)			3P-380VAC(50Hz)
Total Power			20.25kw			30.25kw
Overall dimension of Machine			2950*2300*2600			2950L*2500W*2600H
Machine weight			4000KG			6000KG

Italy technology adopted, the vertical rotary 8 stations 11 axis, boring, drilling, tapping, special tool processing special machine. HT300 bed are customized integral casting, three aging treatments to reduce the internal stress, to ensure no variant. All power unit holes and the reference surface are processed once by a 5 sides CNC machining center, so as to ensure the accuracy in installation and coordination. This machine adopts Schnei der controller, feeding is executed by elevator and vibration plate, auto collect finished parts. High efficiency. Wide operation window is convenient for workpiece to enter and clamp exchange.Once workpiece clamping, 8 stations rotation, synchronous clamps 7 close 1 open, all function power units carry out the drilling,boring, tapping, special tool process in 3 directions synchronously according to customer drawings and processing standards. The blank pieces be completed in 1 clamp to save labor and time.
Company Profile
FAQ
Q1. How can I get a quotation? A. Leave us massage with your purchase requirements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone. Q2. Can you provide customized machine or SPM (Special purpose machine)?
A. Yes, we provide smart solutions for our customer, in order to increase efficiency. Q3. Can you provide training for operation CNC machines?A. Yes, free training in our factory is available. Q4. How about your price?
A. Send me details about what you need, you will get the best price for the best machine. The price is competitive over the world. Q5. What's your warranty terms?A.One year warranty for normal use and we supply maintenance for free. Q6. What kind of payment methods do you support?A. We accept payment methods such as L/C, T/T, DP, DA and so on. Q7. Do you have a professional technician?A. Yes, our company has a team of professional engineers from Taiwan. Q8. What is the technology adopted by the machines in your factory?A.Our factory adopts mature Italy sub technology.

---
