Estop Energy Saving Vertical CNC China CNC Deep Hole Drilling Machine

Product Description

Product Description

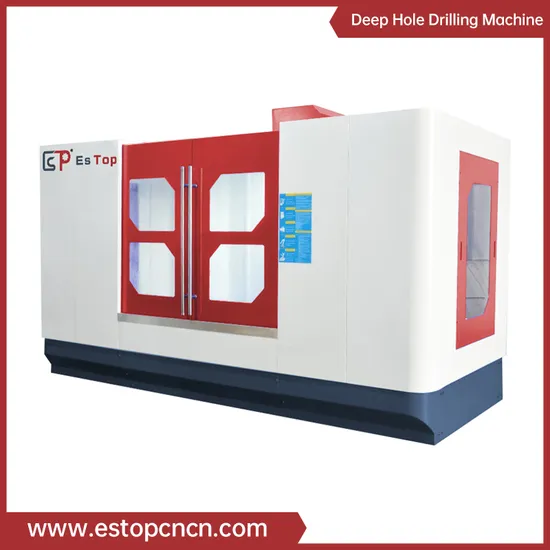

Estop Energy Saving Vertical CNC China CNC Deep Hole Drilling Machine
Product Application:
At present , deep hole driling machine tool is mainly used in the industries as following:
-Mould industry: water line hole, thimble hole, ejection pin hole, electric hole, and inclined hole, etc.
-Hydraulic machinery industry: valve, distributor and pump, etc.
-Automotive industry: cylinder, fuel supply system and other parts.
-Aerospace industry: the propeller, landing gear and other parts.
-Chemical and generator industry: heat exchange parts.
In the future, deep hole driling will be more widely used in different fields, and will have more excellent perormance.
Main Product:
Deep hole drilling, Gun Drilling,5-Sides Drilling and Milling Machining Center, Vertical Deep Hole Drilling, Horizontal Deep Hole Drilling, Horizontal cnc deep hole gun drilling machine,7-Axis Deep Hole Drilling and Milling Compound Machine, Hydraulic channel processing, Deep hole machining of fuel injection system, Cylinder block oil passage processing, Lubrication hole processing of gearbox housing, Cooling water channel processing of injection molds, Temperature control channel processing of die-casting molds, Inner cavity processing of injection needles, Fluid channel processing, Deep hole processing of pipe connectors, Center through hole processing
More Products:
Product Parameters
Product Parameters:

Basic parameters	DH-650	DH-1100	DH-1330	DH-1816	DH-1817
Inner diameter of drilling(mm)	Φ2.0-20	Φ2.5-32	Φ2.5-35	Φ2.5-38	Φ2.5-40
Maximum depth(mm)	600	1100	1300	1600	1700
Size of working table(mm)	700×400	1200×800	1400×800	1700×1000	1800×1200
Displacement of x-axis(mm)	500	1100	1300	1600	1800
Displacement of Y-axis(mm)	450	1000	1100	1200	1200
Displacement of z-axis(mm)	600	1100	1300	1600	1700
Maximum rotating speed of pricipalaxis(rpm)	8000	8000	8000	8000	8000
Load capacity of working table(kg)	3000	8000	9000	10000	11000
Machine size(mm)	3100×2100×2000	4800×3600×2600	4900×3800×2800	5000×4300×2800	5000×4300×2800

One-stop Shopping
You can click on the picture to view the products you are interested in.
Our Service
Speed up your production and Achieve high quality with ESTopCNC.Revolutionizes your factory with ESTopCNC machine.
Installation:
You have decided to purchase products from ESTOP and now want to ensure that they are commissioned in a quick and hassle-free manner. Our installation service makes things as easy as possible.
Maintenance and repair:
Exceptionally high-quality machines require an exceptionally professional service. That's why it pays to bring in specialists. At ESTOP, we know our systems better than anyone else. But there is much more to a good service than this: we are easy to contact, offer prompt availability and boast motivated employees.
Spare parts:
Do you want to perform any repairs that become necessary yourself? Send us your name, part number and the quantity of the required spare parts. Your order will be processed by us immediately. The prompt delivery of ESTOP genuine spare parts is often crucial to ensure the fast repair of a system. The most popular spare parts are stocked in our factory in China.
Training:
To enable you as a user to work skilfully and safely with ESTOP's milling machine and to evaluate the acquired data in a professional manner, ESTOP offers in-house seminars.
Custom made:
Customized design outside of the typical condition.
Service contact:
Do you have a question for our Service Team or would you like to order new machine or spare parts? Professional and easy to contact - you will find the right person to speak to for any matter here.
Company Profile
Quality Control
Packaging & Shipping
FAQ
Q1: Where is your factory located?
A1: Our factory is located in Dongguan city and Chongqing city.
Q2.How can I choose the most suitable machines ?
A2: Please let us know your machining demand or machine size, we can choose the best model for you, or you can choose the exact model by yourself. You can also send us the products drawing, we will choose the most suitable machines for you.
Q3. What is your minimum order quantity and warranty?
A3: MOQ is one set, and warranty is one year. but we will offer lifetime service for machine.
Q4: How to ensure the quality?
A4: 1.Firstly we choose best material for the processing.
2.Being and after processing, we will inspect the finished parts.
3.Machine finished, our company QC will test the machine as per customer requests.
Q5: How do we get the training for the machines?
A5: You can send your people to our factory and we will offer training free of charge, or we can send our engineer to your place.
Q6. What is your trade terms?
A6: FOB, CFR, CIF or others terms are all acceptable.
Q7. What is the payment Terms ?
A7: T/T, 30% initial payment when order ,70% balance payment before shipment; Irrevocable LC at sight. When we receive the advance payment, we will start to make production. When the machine is ready , we will take pictures to you after we got your balance payment. we will send the machine to you.
Q8. What is the package of the machines?
A8: The machines standard packed by iron pallets or Fumigated wood with plywood films.
Q9.When is the delivery time?
A9: We will delivery then within 15-60 working days after received your deposit. If some special machines will be some longer, we will give you the answer accordingly.
Q10: How to deal with the after-sales service?
A10: 1. Technician available for training and installation at customer's company
2. Internet service by sending emails and videos, communicating online or calling
3. One year warranty. During the warranty period, we will sent damage of the machine parts (non-human factors)for free.

---
