US$1,980.00-98,000.00
|
1 Set
(MOQ)
|
Basic Info.
Average Output Power
200W/500W/1000W
Cooling Method
Water Cooled
Cleaning Line Speed
7000mm/S
Fiber Length
Standard 4.5m
Specification
718mmx641mmx852mm
Origin
Wuhan, Hubei. China
Production Capacity
500sets/Month
Product Description

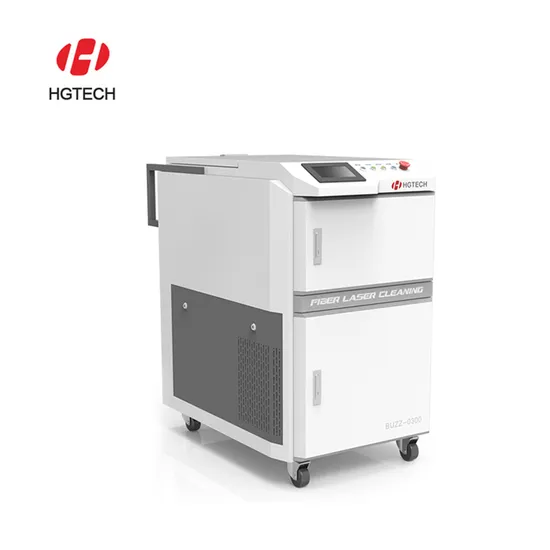

Products Description:
The laser cleaning machine is a high-techproduct of the new generation of surface cleaning. It has the advantages ofeasy control, easy automation integration, no chemical reagents, conformablesurface cleaning, high cleaning cleanliness and high precision. It is highlyefficient, environmentally friendly, reliable, and almost no damage. It alsocan solve a variety of problems that traditional cleaning cannot solve.
> Machine Features:
1) Powerful, short pulses, fast moving laser pulses act on the surface of the target, producing tiny plasma ruptures, shock waves, thermal stress, etc., causing surface materials to sublimate and evaporate.
2) The focused laser beam is capable of accurately evaporating surface objects or dirt.
3) Fiber Laser cleaning is suitable for metal surfaces. The treated and optimized laser beam does not alter metal properties or damage those laser treated surfaces. The precisely tuned laser beam acts only on the coating, residual residue or oxide, and does not harm the underlying parent metal surface.
4) By adjusting other parameters, the laser beam is able to achieve the desired cleaning effect accurately and easily.
Model
| BUZZ-0300
| BUZZ-0500
| BUZZ-1000 | BUZZ-2000 |
Laser working medium
| Mixed with Yb fiber laser
| Mixed with Yb fiber laser
| Mixed with Yb fiber laser
| Mixed with Yb fiber laser
|
Laser power
| 300W | 500W | 1000W | 2000W |
Laser wavelength
| 1064nm
| 1064nm
| 1064nm
| 1064nm
|
Pulse frequency
| 20-50KHZ
| 10-50KHZ
| 10-50KHZ
| 20-50KHZ
|
Cooling Mode
| Water-cool
| Water-cool
| Water-cool
| Water-cool
|
Dimensions
| 1200X700
| 1200x830 | 1130x300 | Customization
|
Weight
| 178Kg
| 240~260Kg
| Customization | Customization |
Scan width
| 10-80mm
| 10-60mm
| 10~120mm
| 10~120mm
|
Optional
| Handheld/Auto/Custom
| Handheld/Auto/Custom
| Custom
| Custom
|
Application:
Metalsurface rust removal, Surfacepaint removal and paint treatment, Surfaceoil, stains, dirt cleaning, Surfacecoating, clear coating, Weldingsurface / spray surface pretreatment, Stonesurface dust and attachment removal, Rubbermold residue cleaning
Applied Industry:
Automotive perimeter, ship, rail transit,aerospace, rubber mold, environmental protection, etc.
Company Introduction:
Wuhan Huagong Laser Engineering Co.,Ltd is one of the largest laser equipment manufacturers in China. HGLASER is the main subsidiary company of Huagongtech Co., Ltd. (Stock code: 000988)
HGLASER is a national key high-tech enterprise, possessing technology centers and provincial key laboratories. Relying on the National Engineering Research Center for Laser Processing, National Key Laboratory for Laser Technology and Exhibition Center for Laser Technology Processing, HGLASER undertakes national key projects and scientific research projects.
Wuhan Huagong Laser Engineering Co.,Ltd possesses HGLASER and FARLEY?LASERLAB two famous brands. HGLASER has always been committed to providing broad and comprehensive laser manufacturing solutions in industrial manufacturing field, researching, manufacturing and selling various laser processing and plasma machining equipments, providing tube laser cutting processing and oil pipeline trade services. The main products of HGLASER cover the full power series of laser cutting systems, laser welding systems, laser marking series, laser texturing equipments, laser heat treatment systems, laser drilling machines, laser devices, all kinds of support devices, laser processing and plasma machining equipments, which are used widely in metallurgy, non-ferrous metals, automobiles, parts, aviation, military, precision instruments, machine manufacturing, hardware, integrated circuits, semiconductor manufacturing, solar, education, communication and measurement, packaging, leathers, plastics, rubbers, jewelries, crafts, medical equipments, etc.
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact -China HGLaser!
Contact Us
Wuhan HGLaser Engineering Co.,Ltd.
Address: HGTECH Laser Industry Park, HUST Science & Technology Park, East Lake High Technology Development Zone, Wuhan
Zip Code: 430223
>>
