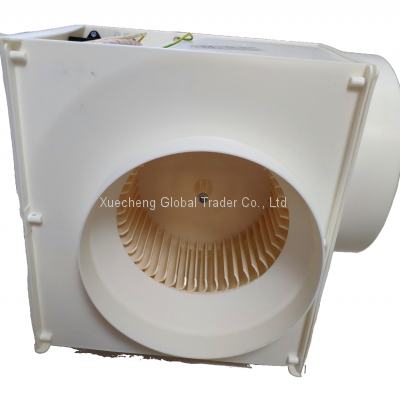

PP Centrifugal Blower for Laboratory Fume Hood Use
Technical Process: the shell is processed and welded by hot air from high quality PP board, and the blade is made by high pressure injection molding.
Function: the fan can extract toxic or corrosive gases in the temperature range of -8 degrees to +80 degrees.
Features
Anti-corrosion plastic, good insulation, acid and alkali resistance, not easy to aging, with certain mechanical strength.
Air/Exhaust Outlet: the outlet can be specially produced at any angle according to customer needs.
Drive mode: adopting direct drive by motor, thus adopt multiple protective measures to protect the drive shaft or fan from corrosion.
Body: equipped with electric air regulating motor, controlled by switch.
Blocking blade: the effective drive angle is 90°, which can be directly connected with air ducts of arious diameters, the operation is simple.
Product models: can be divided into various models 100-1000mm according to the exhaust outlet's diameter
The PP fan has speed of 3 gears, used in ventilation system to adjust the air volume.
Technical Specifications
| PP centrifugal fan |
| Working Principle | centrifugal |
| Power | 0.3kw |
| Power Supply | single phase 100-130V, 60Hz |
| Rotate Speed | 1450r/min |
| Air Volume | 2000-2500m3/h |
| Ventilation Caliber | 250mm |
| Air Pressure(mmHg) | 2.8-3.0 |
| Noise | 65dB |
Packaging&Shipping
They would be packed in cartons for Air shipping
by Airlines: Pure Cargo plane, EY, EK, ET, QR, TK, SQ,CA, CZ, KQ, NYK, etc
by Express: DHL, FedEx, UPS, TNT, EMS, Aramex, etc
More Models for Option
PP axial flow fan
PP centrifuga fan
PE centrifugal fan
large-scale outdoor installation blower
More Models for Option
Application
chemical industry, laboratory, ventilation equipment, metallurgy, electroplating, textile, instrument, scientific research institutions, etc
