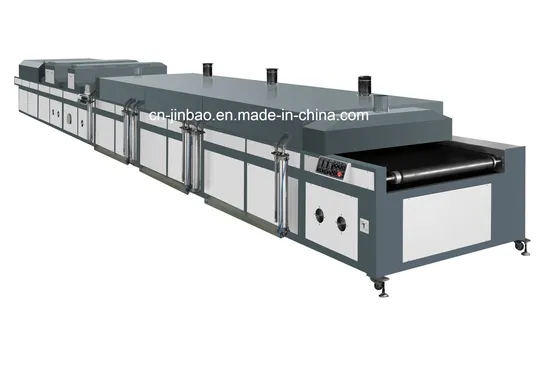

UV and IR Combinated Oven (JB-800P/1100P)

Product Description

1. Multisection free combination design, standard: 3 groups of hot air, 1 group of UV and 1 group of air-condition. The user can mak many options according to the different printing, different ink.
2. Closed cycle pipe line disturbs inside of the container, make sure there are highly active and steady hot air belch to the stock through the beamaperture. Highly coefficient of heat transfer and highly speed drying.
3. Cooling section keep blowing the cold-air blast through the high pressure blower, cooling the stock fleety.
4. Frequency control, teflon convey belt, thermostability, rub resistance, radiation-hardened, insure the working lift of the machine.
5. Equip the pneumatic lifting set, convenience for cleaning and maintain.
6. Automaticaly tensioning and correcting set, insure placidly carrying and convenience for using.

Model		JB-800P	JB-1100P
Max. speed		60m/min	60m/min
Powder of convey motor		0.75KW	0.75KW
Effective solidify width		800mm	1100mm
Hot wind group	Max temperature	150& ordm; C	150& ordm; C
	Power of lamp	Wx9Pcsx3Team	Wx9Pcsx3Team
	Hot wind circulate fan	1.1KWx2x3Team	1.1KWx2x3Team
UVgroup	UV	Wx2Pcsx3Choice	Wx2Pcsx3Choice
	Power of blower	0.75KWx2	0.75KWx2
	Adsorb motor	0.75KW	0.75KW
Air-condition cooler	Air-condition power	0.85KWx2	0.85KWx2
	Fan power	0.85KW	0.85KW
Adsorb motor for feed inlet		0.55KW	0.55KW
Weight(about)		2300kg	2600kg
Overall dimensions		11100X130X1650mm	11100X130X1650mm

---
