BS-Yt 6colour 800mm Heidelberg Flexo Printing Machine

Product Description

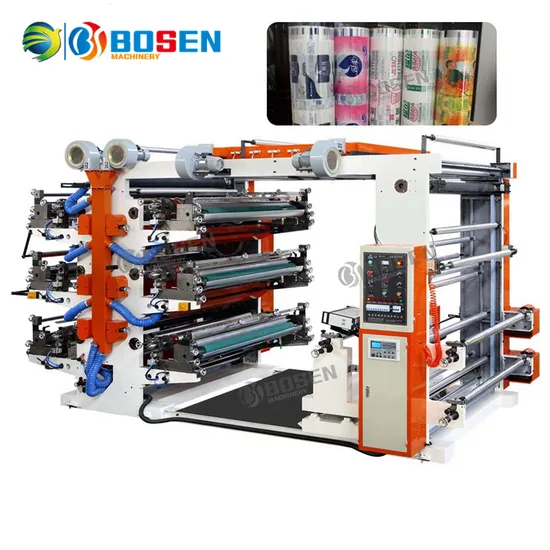

Product Description BS-YT 6colour 800mm Heidelberg Flexo Printing Machine

Application:

This machine is a printing machine that uses photosensitive resin soft plate as the plate material, commonly known as "flexographic printing machine", "flexo printing machine", "relief printing machine" and "flexo printing machine". It is suitable for printing polyethylene, polypropylene, cellophane, plastic film (BOPP OPP PE PVC POT, etc.), non-woven fabric, woven bags, paper and other packaging materials. It is flexible packaging for food paper packaging, supermarket tote bags, waistcoat bags, clothing bags, etc. Ideal printing equipment.

Performance characteristics:

1. Easy operation, straight gear running, accurate color registration.
2. The meter counter can set the printing quantity according to the requirements, it will automatically stop when the number is reached, and automatically stop when the material is cut off.
3. Pneumatically lift the printing plate cylinder, and the ink will be stirred automatically after lifting.
4. The anilox cylinder transfers ink and the ink color is even.
5. Reliable drying system, with high-speed operation, shuts down automatically when shutdown.
6. 360 degree continuously adjustable longitudinal register device.
7. Frequency conversion speed regulation to adapt to different printing speeds.
8. Both the jog and stop buttons are installed on the plate roller base and the receiving frame, which is convenient for manipulating the machine when installing the plate.

Detailed Photos

Product Parameters

Model	YT6-600	YT6-800	YT6-1000
Max. Width of printing material	600	800	1000
Max. Printing Width	560	760	960
Mechanical speed	80m/min	80m/min	80m/min
lMax. Printing speed	5-60m/min	5-60m/min	5-60m/min
Length range of printing product	191-960mm()
Colour Of Printing	6 (1,2,4,8 )
Max. Diameter of roll material	φ450mm()
Thickness of plate (Including Two-sided Glue Paper)	2.38mm(+0.38)
Total power	17kw	18kw	20kw
Weight	3500kg	4000kg	4500kg
Dimension	4200×1600×2800mm	4200×1800×2800mm	4200×2000×2800mm
Voltage	380V 3-phase 50Hz(,:220V, 410V, 440V)

Certifications
Packaging & Shipping
Company Profile
After Sales Service 1.Guest:Are you a manufacturer or a trade company?
BOSEN: We have our factory for manufacturer and we also trade associated products.We are Wenzhou bosen machinery co. td. We are doing machines since 2000.
2.Cuest: Do you accept speclal design?
BOSEN:Yes, we accept design and manufacture products according to client's special requirements.
3.Guest: What about your packege?
BOSEN:We use film stretch package and contrainer, or you can order with wooden case package.
4.Cuest: How long wil you take before shippng?
BOSEN: It depends on the products that you need,but we guaranteefor shiping as fast as we could. Normally it will take 30 days after we receive the payment.
5.Guest: How can l go to your fectory?
BOSEN: We are in ruiancty Zhejang China. If you want to come,you can take airto Wenzhou air port, Or take train to RuiAn station.

6.Guest: How can l get after-sale service?
BOSEN: One year guarantee time, and 10 years after sale service.
