Optical Fiber Cable Single Mode, Multi Mode Armored Outdoor PE Backet

Product Description

Technical Parameters - Single mode fiber

Item	Unit	Specification
Attenuation	Db/km	1310nm≤0.4 1550nm≤0.3
Dispersion	Ps/nm.km	1285~1330nm≤3.5 1550nm≤18.0
Zero dispersion wave length	Nm	1300~1324
Zero dispersion slope	Ps/nm.km	≤0.095
Fiber cutoff wavelength	Nm	≤1260
Mode field diameter	Um	8.6±0.5
Mode field concentricity	Um	<=0.8
Cladding diameter	Um	125±1.0
Cladding non-circularity	℅	<=1.0
Coating/cladding concentricity error	Um	<=12.5
Coating diameter	Um	245±10
Bending, dependence attenuation	Induced 1550nm,1turns,32mm diameter,100rums,60mm diameter	<=0.5db
Proof test	Kpsi	>=100

Technical Parameters - Multi mode fiber

Item	Unit	Specifications
Attenuation	Db/km	850nm<=3.0 1300nm<=1.0
Bandwidth	MHz·km	50/125um 62.5/125um 850nm>=200 850nm>=160 1300nm>=200 1300nm>=200
Cladding diameter	Um	125±1.0
Cladding non-circularity	℅	<=1.0
Coating/cladding concentricity error	Um	<=12.5
Coating diameter	Um	245±10
Bending, dependence attenuation	Induced 850nm, 1300nm 100turns ,75mm diameter	<=0.5 at 850nm \1300nm
Proof test	Kpsi	>=100

Description:

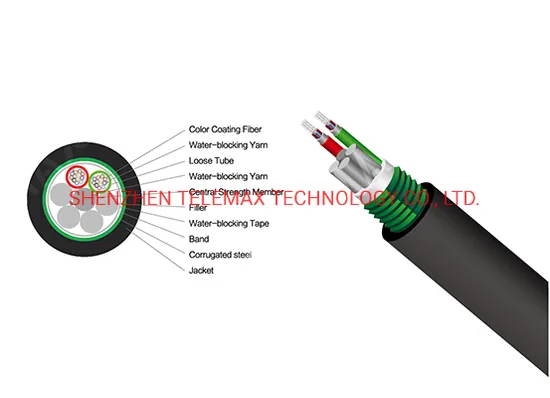

Loose tube is made of colored optical fiber without filling waterproof compound. Loose tubes are stranded around the strength member which are in the central of cable into cable core, a layer of water-blocking tap is longitudinal wrapped around the cable core, after corrugated steel is longitudinal wrapped, an outer jacket is extruded.

Jacket:
Materials: PE, LSZH, ZRPE or other material.
Color: Black or other agreed color

Features
Application: Directly bury or Duct

Characteristic:
Good mechanical and environmental performance. High strength loose tube is hydrolysis resistant. Crush resistance and moisture barrier. Easy for construction, convenient for cable splicing

Temperature: -40ºC - 70ºC

Fiber count: 1-144F
Cable Dimension: 11-19.2mm

Package and shipping mark

Printing at out jacket of optical cable

White color printing words at each meter distance, standard printing content as following, also can match the customer require for the printing content
1). Meter mark
2). Style of optical cable and fiber account
3). Manufacturer name
4). Manufacturer date
5). Package of optical cable
- Standard length is 1KM, other length can negotiate
- Can be packed in wooden drum or plywood drum

Wooden drum

Label will be sticked at wooden drum, content as follow
1. Style of optical cable and fiber account
2. Length
3. Gross weight KGS
4. Total drums amount
5. Manufacturer date
6. The following information also will be exposed at the wooden drum
- Rolling direction
- Optical cable rolling tightly with the wooden drum, in order to prevent it will be broken during transportation process

---
