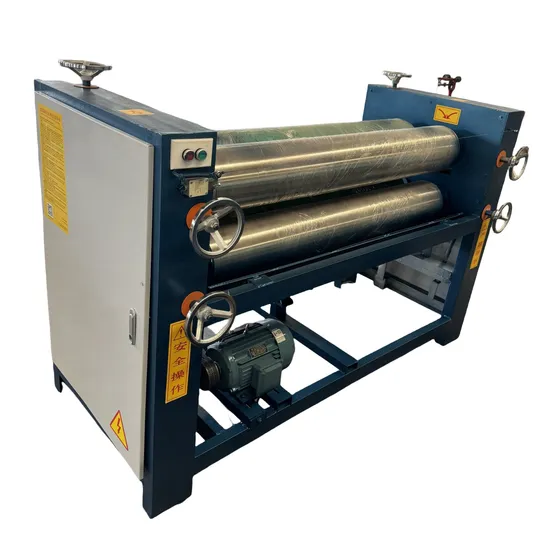

Heavy-Duty Glue Spreader Machine for Plywood Production Lines

Product Description

Product Description
4 FEET GULE SPREADER

1	Model	TJ1400L-410
2	Installation style	front back , up bottom
3	Spreading form	double face
4	Driving method	gear drive
5	Rubber roller diameter	Φ415 mm with ropiness
6	Rubber roller length	1400 mm
7	Steel roller diameter	Φ296 mm electroplating
8	Main motor	7.5 KW
9	Electricity standard	380 V, 60 HZ, 3 phases
10	Reducer model	4#
11	Main inverter	7.5 KW
12	Main machine weight	3600
13	Machine size	2900*1700*1900 mm
14	Delivery time	60 days

Detailed Photos
Company Profile
Company Profile
Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine, plywood production machine, particle board machine, MDF board machine, saw mill machine, related machine, materical and spare parts for wood-based panel machinery.
Main business range is as following:
1-wood veneer production machine:
Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.
2-plywood production machine, film faced plywood machine:
Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, boiler, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.
3- Particle board machine and MDF board machine.
4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.
Packaging & Shipping

FAQ
Frequently Asked Questions
1.Can the product be customized?
Yes, we support product customization. Customize different products according to your needs.
2.Does the product have after-sales service?
Yes, we offer both online and offline service with a one-year warranty and lifetime after-sales.
3.Why choose us?
Excellent quality and service, as well as cost-effective products.
4.How to ensure the quality of the product?
Welcome to our factory to see the production process.
5.Who is responsible for the installation and commissioning of the machine?
We have more than 15 technicians on site to guide, install and commission the equipment.

---
