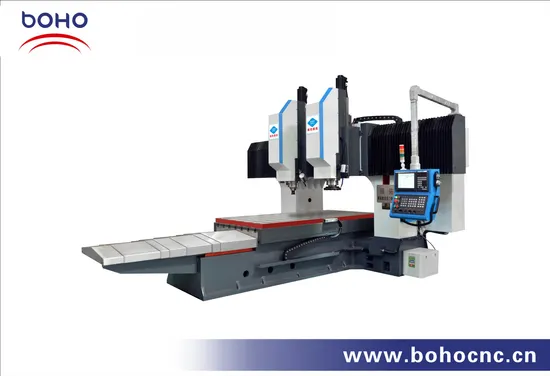

Boho Double Head CNC Gantry Milling Machine Bh-1525mass / Vertical Milling Machine/ Tool Steel & Mold Surface Processing with High-Finish

Product Description

Product Description

Main Function:
Integration of roughing and finishing milling of workpiece thickness, CNC control size setting processing size, automatic measurement, secondary side automatic roughing and finishing, reducing the work intensity of the operator, improving processing efficiency, ensuring the flatness and roughness of the workpiece.
1. Full automation ensures consistent milling quality:
Automatic measuring and/or tool setting, automatic parting and automatic joint cutting, automatic roughing and finishing.

2. Easy operation:
One clamping, milling on both sides, from black edge to finishing size, just flap, flap helps you to finish the flap easily and safely.

3.Motorised permanent table:
It can firmly fix the workpiece without fixture, the contour workpiece can be clamped in any size range of the table, higher efficiency and better performance.
Detailed Photos

Specifications:

Item		Unit	BH-1525MASS
Size Parameter	Max milling area	mm	2500*1500
	Max height of milling	mm	500
	Worktable size	mm	2500*1200
	Max widths of milling	mm	1200
Three-axis Servo Motor	X axis servo motor	N·m	29
	Y1/Y2 axis servo motor	N·m	10
	Z1/Z2 axis servo motor	N·m	15
Feed Speed	X axis feed speed	M/min	0~6
	Y1/Y2 axis feed speed	M/min	0~4
	Z1/Z2 axis feed speed	M/min	0~3
Milling Head Parameter	Power	KW	15
	Variable gear position	/	CVT
	Milling head speed	rpm	0~500
	Spindle taper	/	BT50
Other Parameter	Load	KG	7000
	cover area	mm	7500*4200
	Overall height of machine tool	mm	3000
	Machine weight	kg	16000

You can choose LNC, MITSUBISHI or FANUC Controller as you like.
FAQ

1. What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company.
3. How can I choose the most suitable machines?
A: Please let us know your machining demand or machine size,we can choose the best model for you, or you can choose the exact model by yourself. You can also send us the products drawing, we will choose the most suitable machines for you.
4. Are you a manufacture or trading company?
A: we are innovative interprise with rich experience. Warmly welcome you to visit our factory.
The machine can be customized according to the customer's requirements.
The maintenance fee includes:1.Technician travel time and costs2.Maintenance and calibration work3.Small items required to perform assigned maintenance work4.Calibration and provision of appropriate maintenance and test reports to demonstrate that calibration results comply with national standards
BOHO Machinery double-sided milling can be carried out on any of the following materials:
Steel Stainless steel Tool steels Hot work die steel Cold work tool steel Plastic mold steel Raw metal Aluminum Ferrous or non-ferrous metals Cast iron Mold plate other four-sided square metal

---
