Product Details
Product Description
Product Description
Product Description

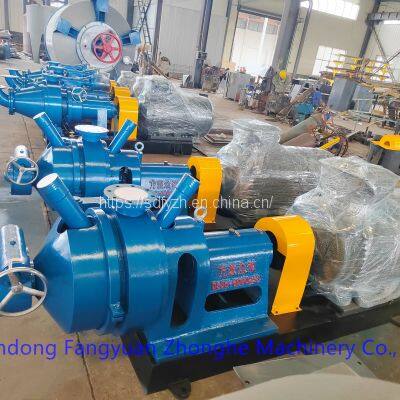

FPM Double Disc Refiner Machine is a coarse and fine pulping equipment in the pulping system of paper making industry. It can also be used as a high efficiency dredging equipment for slurry regrinding and waste paper repulping, it has the advantages of high production efficiency and low power consumption.
Item
| FPM380
| FPM450
| FPM550
| FPM600
|
Diameter of grinding disc(mm)
| φ380
| φ450
| φ550
| φ600
|
Production capacity(T/D)
| 6-20
| 8-40
| 25-80
| 40-120
|
Concentration of inflow pulp(%)
| 2-5
| 2-5
| 2-5
| 2-5
|
Pressure of inflow pulp(Mpa)
| 0.1-0.3
| 0.1-0.3
| 0.1-0.3
| 0.1-0.3
|
Diameter of inflow pulp pipe(mm)
| 2-φ65
| 2-φ70
| 2-φ85
| 2-φ90
|
Diameter of output(mm)
| φ70
| φ100
| φ120
| φ150
|
Power of motor(kw)
| 37kw/6 level
| 90-110/6level
| 132-160/6level
| 160-250/6level
|
Our Services
Fangyuan Zhonghe has a complete sales service system, which is composed of marketing, distribution management, direct sales business, technical support, after-sales service, regional development and other parts of the network throughout the country. These network nodes form an organic whole with the company headquarters and serve the users wholeheartedly.
Company Information
Shandong Fangyuan Zhonghe Machinery Co., Ltd(Formerly Zhucheng Fangyuan Machinery Co., Ltd) is the backbone enterprise specializing in the production of environmentally-friendly pulping equipment, tissue paper machine and sewage treatment equipment, the main products include two categories, more than 50 series, the production of paper pulp making equipment, such as FPM Double Disc Refiner Machine, sewage treatment equipment, with high technical content, it has reached the domestic advanced level in the same industry.
Fangyuan Zhonghe adhere to the business purpose and policy of "customer is the first" and "unity and pragmatism, striving for excellence", introduces the modern science and technology and management methods, and constantly introduce excellent talents and modern equipment, breaks through innovation, strives for excellence, the excellent quality makes company's products develop continuously in the fierce market competition. The FPM Double Disc Refiner Machine we manufactured were sold well all over the country and exported to Southeast Asia, Central Asia, Africa and other countries and regions.
Q1. Are you a manufacturer?
A: Yes, we have been concentrating on this series of products for 20 years' experience
Q2. How to proceed an order for the FPM Double Disc Refiner Machine from factory?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production and shipping.
Q3. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
Q4. What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be finished before the guarantee date.
Q5: Do you offer guarantee for the FPM Double Disc Refiner Machine?
A: Yes, under the right condition , we offer different time warranty for our products.
Q6. How to pack the FPM Double Disc Refiner Machine?
A: Standard oversea packages or according to customer's requirement will be used.
If you have special package requirements, we will pack as required, but the fees will be paid by
customers.
Q7. How to install the FPM Double Disc Refiner Machine after arriving destination?
A: We will provide detailed drawings to you. If it is necessary, we will send technical engineers to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
>>
