| US$95.50 | 100 Pieces (MOQ) |

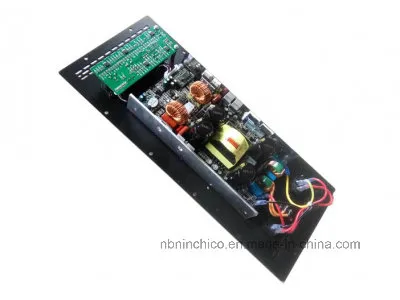

| SPECIFICATION | PDA1000-SUB |
| Bridged 8 output power | 1000W |
| Total harmonic distortion (20Hz-20KHz) | <0.05% |
| Conversion rate | 90V/us |
| gain | 80dB |
| Circuit type | Class D digital amplifier |
| Signal-to-noise ratio | >95dB |
| Degree of separation (20Hz-20KHz) | >90dB |
| frequency response | 20Hz-20KHz+1.5dB |
| Damping factor (8, 20Hz-20KHz) | > 100 |
| Input sensitivity (8) | -2.2dB/0dB/+3dB |
| Input impedance | 20KΩ balance / 10KΩ unbalance |
| Cooling method | Natural cooling |
| AC110V-220V / 50-60Hz | |
| Protection function | Short circuit protection, temperature protection, overload protection, overvoltage protection, soft start protection, high frequency protection, DC protection |
