140t Newly Made Plastic Injection Mold Molding Machine

Product Description

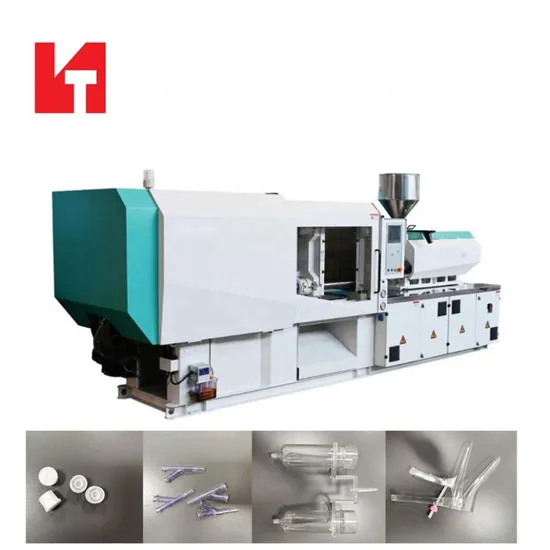

140 Ton Plastic Injection Molding Machine
Plastic injection molding machine consists of a plasticizing system, injection system, clamping system, and transmission system.
We have been applying die-casting technologies to injection molding machines for many years, like in mechanical, hydraulic, electric control, etc for comprehensive improvement, the perfect combination of dynamic pressure casting and speed.
To improve the production stability and save energy for medical products such as syringes, We specially add an infrared heating coil and servo motor system to the standard injection molding machine.

Item	Unit	NT100			NT120			NT140			NT170			NT180			NT200
SCREW DIAMETER	mm	30	32	35	38	42	45	38	42	45	42	45	50	42	45	50	45	50	55
SCREW L/D RATIO	L/D	23.5	22	20	22	20	18.5	22	20	18.5	21.4	20	18	21.4	20	18	22.2	20	18.2
INJECTION STROKE	mm	165	165	165	170	170	170	170	170	170	225	225	225	225	225	225	250	250	250
INJECTION SPEED	Mm/sec	88	88	88	90	90	90	112	112	112	118	118	118	94	94	94	103	103	103
SHOT VOLUME(THEORETICAL)	CM3	117	133	158	193	235	270	193	235	270	312	358	442	312	358	442	397	490	594
INJECTION WEIGHT(PS)	g	106	121	144	175	213	245	175	213	245	284	326	402	284	326	402	361	445	540
INJECTION PRESSURE	Mpa	230	203	170	177	145	126	177	145	126	174	152	123	218	190	154	221	179	148
INJECTION RATE	cm3/sec	62	70	84	102	124	143	127	155	178	163	187	231	130	149	184	163	202	244
SCREW SPEED	rpm	181			190			212			210			210			225
CLAMP FORCE	Kn	1000			1200			1400			1700			1800			2000
OPEN STROKE	mm	320			360			390			435			435			435
SPACE BETWEEN TIE BARS	mm×mm	360*360			420*380			420*420			470*470			525*465			480*480
MAX.MOULD HEIGHT	mm	350			430			460			550			550			550
MIN.MOULD HEIGHT	mm	150			150			160			180			180			180
EJECTOR STROKE	mm	90			107			120			129			129			135
EJECTOR FORCE	Kn	30			40			46			46			46			46
EJECTOR NUMBER	N	5			5			5			5			5			5
MAX.PUMP PRESSURE	Mpa	16			16			16			16			16			16
SEVRO DRIVE POWER	Kw	11			15			18.5			22			22			30
HEATING POWER	Kw	7			7.5			7.5			9.9			9.9			12.5
MACHINE DIMENSION(L*W*H)	m×m×m	4.2*1.2*1.8			4.6*1.3*2.1			4.8*1.3*2.1			5.3*1.4*1.2			5.4*1.4*2.3			5.4*1.45*2.1
MACHINE WEIGHT(ESTIMATE)	T	3.1			3.5			3.8			4.9			5.4			5.5

Q: Are you a manufacturer or trading company? A: We are a manufacturer with decades of experience, located in Zhejiang province. Q: What is the product range? A: Focus on the manufacturing and developing plastic injection molding machines and their auxiliary equipment such as robot arms, cooling towers, chillers, etc. Q: Where is your main selling market? A: We have business domestically, in the USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes, we will arrange our skilled engineers for field installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have the source for molds and spare parts? A: Yes, we can offer competitive quality and reasonable prices. Customized as required. Q: What is the standard of the package? A: Wooden case packing for the auxiliary equipment, and bare packing for the plastic injection molding machine. Full container shipment is highly suggested.

---
