Product Details
Product Description
Product Description

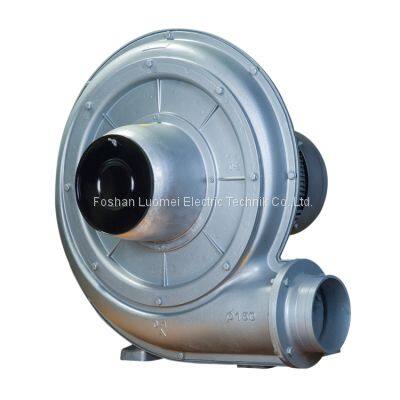

Features:
1. Light weight, medium pressure, big volume, low noise.
2. Aluminum alloy material, greatly reduce weight, achieve the goal of light weight.
3. Design ( 1 HP motor for I . E. C above ) , full close outer fan type aluminum frame, motor axis of special design, can be suitable for long time use, high temperature resistance 120°C, if you have special request, we can customize temperature resistance 200°C
4. Special blade design, unilateral opening without blocking.
5. Special air damper, can adjust the airflow, easy to operate (CX) TB) HYB applicable.
6. The air inlet and outlet of the fan are designed independently,optional reducing pipe,docking use,the air outlet can choose four directions,the motor can be left or right.
Other main model (50/60Hz)
CX-65A, 1 phase, 200W, 220V, 4.5/5.3m3/min, 1.1kpa, -0.7kpa, inlet 100mm outlet 75mm, 10KG
CX-65A, 3 phase, 200W, 220/380V, 4.5/5.3m3/min, 1.1kpa, -0.7kpa, inlet 100mm outlet 75mm, 10KG
CX-75SA, 1 phase, 400W, 220V, 7/8m3/min, 1.6kpa, -1.1kpa, inlet 100mm outlet 75mm, 11KG
CX-75SA, 3 phase, 400W, 220/380V, 7/8m3/min, 1.6kpa, -1.1kpa, inlet 100mm outlet 75mm, 11KG
CX-75A, 1 phase, 750W, 220V, 13/15m3/min, 2.4kpa, -1.7kpa, inlet 125mm outlet 100mm, 14KG
CX-75A, 3 phase, 750W, 220/380V, 13/15m3/min, 2.4kpa, -1.7kpa, inlet 125mm outlet 100mm, 14KG
CX-100A, 1 phase, 1500W, 220V, 20/23m3/min, 3kpa, -2kpa, inlet 125mm outlet 100mm, 28KG
CX-100A, 3 phase, 1500W, 220/380V, 20/23m3/min, 3kpa, -2kpa, inlet 125mm outlet 100mm, 28KG
CX-125A, 3 phase, 2200W, 220/380V, 32/37m3/min, 3.7kpa, -2.4kpa, inlet 252mm outlet 125mm, 38KG
CX-150A, 3 phase, 3700W, 220/380V, 46/53m3/min, 4.4kpa, -3.2kpa, inlet 252mm outlet 150mm, 54KG
TB150-7.5, 3 phase, 5500W, 220/380V, 50/65m3/min, 5.3kpa, -4kpa, inlet 252mm outlet 150mm, 73KG
TB150-10, 3 phase, 7500W, 220/380V, 60/75m3/min, 5.3kpa, -4kpa, inlet 252mm outlet 150mm, 82KG
TB200-15, 3 phase, 11KW, 220/380V, 65/85m3/min, 6.5kpa, -5kpa, inlet 315mm outlet 200mm, 117KG
TB200-20, 3 phase, 15KW, 220/380V, 90/100m3/min, 7kpa, -5kpa, inlet 315mm outlet 200mm, 130KG
The two airflow one is 50Hz, another is 60Hz
We have many other model for you choose, if you want, please contact with me ,so we can send catalog to you.
