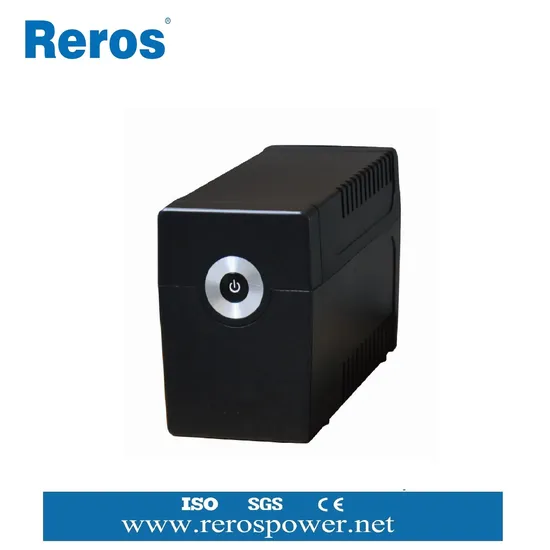

48V/1000-4000W Ep Series Offline Sine Wave UPS Power Inverter

Product Description

Product introduction
EP series is sine wave low frequency inverter, which is specifically designed for home appliances. It is equipped with a big LCD screen so all information is displayed in detail, which makes it more convenient to use. Charging current of the inverter is adjustable from 5A to 45A and you can also select different charging voltage to charge different types of batteries so batteries are under great protection.

Feature
1, Suitable for all electrical equipments
2, Large LCD display for more detailed content
3, CPU controlled; fast transfer time
4, Intelligent battery management, prolonging the service life of the battery
5, Complete protection function, high reliability
6, Can provide high current charge
7, Can match different types of batteries
8, Disassembled LCD box which can make the operation in a distance of 15 meters
Specification

Model #			EP-1012	EP-1024	EP-2012	EP-2024	EP-3024	EP-4048	EP-5048	EP-6048
			EP Solar-1012	EP Solar-1024	EP Solar-2012	EP Solar-2024	EP Solar-3024	EP Solar-4048	EP Solar-5048	EP Solar-6048
Capacity			1000W	1000W	2000W	2000W	3000W	4000W	5000W	6000W
INPUT
Input voltage range			185~265±5Vac
OUTPUT
Output voltage range			185~265±5Vac (AC mode) , 230Vac (DC mode)
Output frequency (DC mode)			50Hz (48~54Hz) or 60Hz(58~64Hz), same as AC(AC mode)
			50Hz ±0.3Hz (DC mode)
Wave form			Sine wave (DC Mode)
Transfer time			10ms. (Typical)
BATTERY
Rated charging current (max.)			45A
Norminal DC input voltage			12V	24V	12V	24V		48V
Min. DC start voltage			10V / 20V / 40V
PROTECTION & FUNCTION
PROTECTION	Overload		(100%<load<120%)±10%: Auto shutdown in 2 mins
			(120%<load<140%)±10%: Auto shutdown in 60secs
			(140%<load)±10%: Auto shutdown in 20secs
	Short circuit		Yes
	Breaker		Input 15A; Output 10A				Input 30A; Output 15A	Input 35A; Output 20A	Input 35A; Output 25A	Input 40A; Output 30A
FUNCTION			1. DSP control; Fast transfer time
			2. Intelligent battery management
			3. Disassembled LCD box which can make the operation in a distance of 15 meters.
			4.Optinal charging current for different capacity of batteries
			5. Low current of 800mA for no load (EP solar series)
PHYSICAL
Unit dimension (mm)			526*277*212					702*277*212
Master box dimension (mm)			620*350*370					810*350*370
Pcs in one master carton			1
Gross weight (1pc, kg)			28		33.0		35.0	42	45	47
Net weight (1pc, kg)			22.8		27.6		32.4	38.2	41	44.5

FAQ
1)What is your minimum order quantity?
A: For common specification, there is no minimum order quantity, and one piece could also be supplied. The difference is just the price and schedule. If your request is some special, we need to calculate it accordingly.
2)Is OEM/ODM available?
A: Yes, it is! Our products can be Customized. We have 5 senior engineers in our R&D Dept.
3)What is the Terms of Payment?
A: T/T, L/C, D/P, D/A, Western Union, Paypal and MoneyGram (for Small-amount payment).
4)Can you offer Form A or Form E or C/O?
A: Yes, it's no problem, we could apply it from our local government.
5)What's the warranty condition for your UPS?
A: 1 year warranty after the shipment of boarding date, and 1% of UPS amount by free Spare Parts shipped together with each order shipment;
6)How is your delivery time?
A: It depends on your order quantity and specification, usually about 7~20days, and it won't cost more than 35days
7)What are the advantages of your company?
A: Reros has about 30 years manufacturing experience, and more than 15 years exporting experience. We promise your quality and service all the time. Adequate inventory, and supply guarantee for the subsequent renewal of supply, providing different solutions.

---
