1200-2800mm Polypropylene Multilayer Grid Fluted Colorful PP Hollow Sheet Corrugated Board Packing Boxes Carton Sheet Making Extruder Manufacturing Machine

Product Description

12000-2800mm Polypropylene Multilayer Grid Fluted Coloful Painting PP Hollow Sheet Corrugated Board Packing Boxes Carton Sheet Making Extruder machine
Product Description:

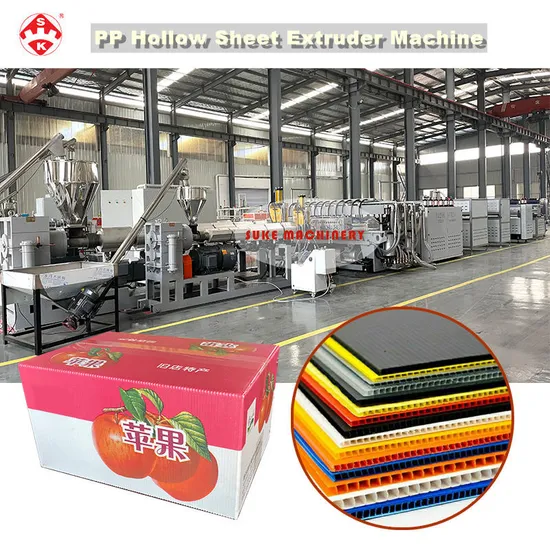

This extrusion line consists of single screw extruder, melt-pump, hydraulic filter exchanging unit, hollow
sheet die head, vacuum calibrating table, first haul off machine, oven, corona treating unit, cooling table, second haul off machine, trimming and length-settled cutting units and stacker etc.
The technology of hollow sheet die with co-extrusion feed block to get UV+PC+UV, UV+PC hollow sheet can save 30% UV on the surface.
Application:
PP/PE hollow sheet is light and high strength, moisture-proof, good environmental protection and re-fabrication performance and can be used into the reusable container, packing case, clapboard, backing plate and culet.

PP/PE Hollow Sheet Extrusion Line Technical Data		PC Hollow Sheet Extrusion Line Technical Data
Extruder model	SJ-120,SJ-100	Extruder model	SJ-120, SJ-65
Sheet width	2100mm, 1220mm	Sheet width	2100mm
Sheet thickness	2-8mm, 2-8mm	Sheet thickness	4-40mm
Max capacity	350kg/h,200kg/h	Max capacity	450kg/h
Main motor power	132kw	Main motor power	132kw

MACHINE PICTURES:

Single Screw Extruder
Type: SJ110x36
Screw quanitty: Single screw extruder
Motor: 132 kw
Control: button control or PLC control
Equipped with screen exchanger for material flittering.
OMRON temperature control
SIMENS motor and contactor
ABB or Scheider inverter

calibration machine
central height: 1100mm
The water inlet pipe is regulated with valves
Vertical bar structure, smouldering treatment, avoid deformation
central height can be adjusted a little

Haul-off Machine
Roller quantity: 6 pairs
Roller material: Nitrile butadiene rubber
up and down of hauling roller: by pneumatic

Heating Oven:
Tank Length is 2 meters
Heating power: 32kw
Application : for sheet second heating

Cooling Fans
To cool down the fans with many electrial fans
Corona Treatment Machine
For doing corona with hollow sheet, so that will be easy to printing
Cutting machine
Automatic cutting by blade
longitudinal move: cylinder drive

Why Choose Us?
Strong Strenth
Founded in 2002.
20000 square meters factory
Over 50 workers

Rich Experience
Over 500 lines exported
Sell to over 20 countries
Cover all of extrusion products

Professional Support
Machine & Specification Making
Details infos classfication
Picture & videos sharing
Formula & operation support
Good After Service
Full set of drawings
Full set of operation manual
Free running test
Free online technical support

---
