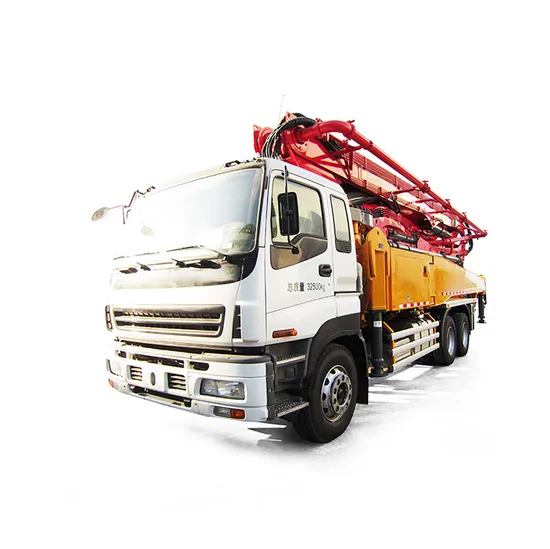

Hb43K China Concrete Pump Truck China 42m Diesel Boom Concrete Pump Truck Hb43K Price

Product Description

Contact Information
Name:Ruben
CHN/ENG/ESP
Contact me via WhatsApp so we can communicate more conveniently
Looking forward to your message.
Product Description

Description		Unit	Parameter value
Outline dimension		mm	11260×2500×3990
Overall weight		kg	31000
Chassis	Model		ZZ5347V4847C1
	Max. speed	km/h	90
	Max. grade-ability	%	40
	Wheelbase	mm	4600+1350
	Tire		1200R20
Engine	Model		D12.42-30
	Max. power	kW	278
	Max. torque	N·m/(r/min)	1820/1100~1500
	Displacement	L	10.837
	Emission standard		Eruo III
Pumping system	Theoretical output	m³/h	170
	Concrete pumping pressure	MPa	8
	Theoretical pumping times	Time/min	23~26
	Delivery cylinder diameter ×stroke	mm	φ260×2000
	Max. diameter of pumping concrete	mm	40
	Filling height	mm	1580
	Concrete slump range	cm	8~23
Placing boom	Reach height	m	43
	Reach depth	m	29
	Slewingradius	m	37.3
	Slewing angle	°	±270
	Unfolding angle of the 1st section	°	90
	Unfolding angle of the 2nd section	°	180
	Unfolding angle of the 3rd section	°	180
	Unfolding angle of the 4th section	°	230
	Unfolding angle of the 5th section	°	210
Stabilizer span	Longitudinal span of stabilizer	mm	7700
	Transverse span of front stabilizer	mm	7300
	Transverse span of rear stabilizer	mm	7740

1,V7 series truck mounted concrete pump is a new generation equipment which is developed by XCM-G and SCHWING Germany technology.
2,It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
