Taiwan Jugang King Steel CNC High Quality Gantry Double Column Machining Center

Product Description

Technical Data
Model	LM-3018 double column machining center	Mitsubishi M80A
Worktable	Length x width	3000x1600mm
	T-slot (Width x No. x Distance)	22mmx9pcsx180mm
	Max. loading weight	8000kg
Travel	X axis travel	3000mm
	Y axis travel	2000mm
	Z axis travel	1000mm
	Spindle nose to worktable	150-1150mm
Double-column	Distance between two columns	1800mm
Guideway (HIWIN-P grade)	X width/ numbers/ blocks	55mm roller/2pcs/6pcs P grade
	Y width/ numbers/ blocks	55mm roller/2pcs/6pcs P grade
	Z Box square guide/numbers	Z Rectangular slide guide ways/2pcs/4pcs P grade
Screws (HIWIN-C3 grade)	X/Y/Z screw specific	X:Φ80,P20mm/ Y:Φ50,P10mm/ Z:Φ50,P10mm
Spindle (JUGANG and Royal/Kenturn )	Direct spindle speed	6000rpm
	Spindle motor power	22/26Kw
	X/Y/Z servo power	4.5/4.5/4.5Kw
	Spindle taper	BT50
Feed	X/Y/Z feed speeds	8/10/10m/min
	X/Y/Z cutting feed	1-8000mm/min
Accuracy	X/Y/Z Positioning accuracy	X:0.018/ Y:0.016/ Z:0.016mm
	X/Y/Z Repeatability	X:0.012/Y:0.008/ Z:0.008mm
Tool magazine	Tool quantity	24T
	Max tool dia. (Full)	110mm
	Max tool dia. (Empty)	200mm
	Max.tool length	400mm
	Max. tool weight	18kgs
	T-T time	3.5sec
Working conditions	Electricity	3Ф380V,50HZ,35KVA
	Temperature	0-40ºC
	Relative humidity	≤90%
	Air pressure	5-6 bar and 0.2m³/min
Dimension& Weight	Approx.outer dimensions	8637*4705*4956mm
	Approx. weight	29T

Standard configuration

1.Spindle oil chiller

2.Rigid Tapping

3.Automatic power off switch

4.3colors alarm light

5.Cooling system (cooling pump*2)

6.Automatic micro lubrication for linears and screws

7.Separate handwheel(MPG)

8.Electric box heat exchanger

9.Fully enclosed sheet metal

10.BT50-24Tchain type tool magazine

11.Tool kit

12.Around spindle coolant and compressed air

13.Leveling screws and pads

14.Compressed air blow out through spindle.

15.Chips disc and water tank

16.Water gun and compressed air gun

17.Standard packing

18.3Axes screw and linear covers

19.Ethernet interface

20.USB and CF card interface

21.Transformer(Specification as requirement)

22.10.4'' screen LCD

23.Pedal ladder

24.Chain type chip conveyor *1 & screw type chip conveyor*2

FILES WITH MACHINE:

1.QC report

2.Machine operation manual

3.Foundation drawing

4.Precision testing report

5.Machine circuit manual

6.Controller operation manual

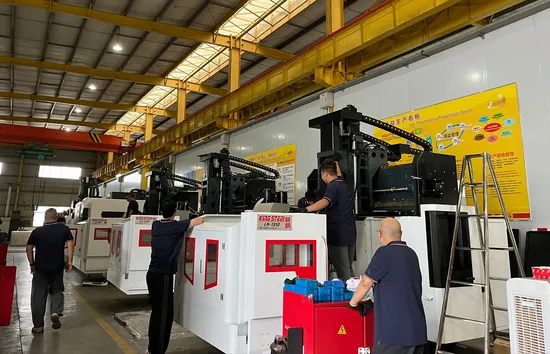

Our advantage: 1. The machine tool beds are all designed and produced by ourselves. The R&D team is from Taiwan and the machine quality is high. In order to obtain domestic policy support, we chose to produce in Zhangzhou, a Taiwanese investment area. The price will be much lower than that of Taiwanese machines.2. The casting is made of HT300 and processed using the MEEHANITE process. After more than half a year of natural aging, artificial aging, vibration treatment, and internal annealing treatment, the casting has high stability and is not easy to deform; it is manually scraped to ensure accuracy.3. We can produce five-axis machines. The machine accuracy reaches Acc. VDI 3441 Std. We have 6 bearings (4 in the front and 2 in the rear).4. The controllers (FANUC, Mitsubishi, Siemens) and spare parts are all brands with the most stable and reliable quality in the world.
5. The advantage of our gantry is that it is one-piece and has strong rigidity. The beams, columns, base and columns are all cast in one piece. Others' gantry is not one-piece but separate.
Remark:
1.Transportation: By sea.
2.Validity: 30 days.
3.Delivery time: Within 50 days after receiving the prepayment.
4.Payment terms:30% T/T in advance, 70% after inspection before shipping.
5.Warranty: 12months non-human made damage for mechanical parts and 24 month non-human made damage for NC controller since customer receiving the machine.
6.Installation and commissioning personnel and days: According to the customer's need, 2 engineers and 1 translator, within 7 days(depends on the actual situation).
7.Engineer Travel, Installation and commissioning expenses: The round-trip tickets and accommodation are all offered by buyer. And the Labor cost are also offered by buyer.

---
