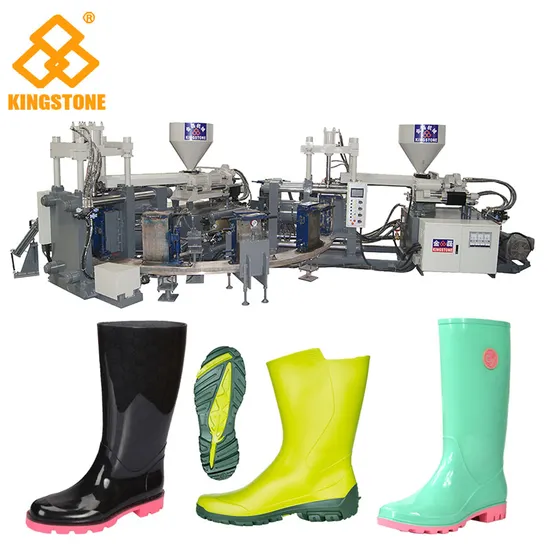

Automatic Rotary Two Colour Plastic Rain Shoe Injection Molding Machine

Negotiable 1 SET (MOQ)

Basic Info.

Model NO.
JL-288-2C
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Injection
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP, QS
Name
Gumboots Making Machine
Machine Type
Injection Molding Machine
Work Stations
10/12/16
Machine Weight
18 Tons
Power Consumption
25-30 Kw/H
Mould
One Mould One Piece
Mould Weight
400kg Per Pair
Finished Products
Rain Boot, Gumboots
Shipping Terms
Fob Shenzhen
Transport Package
Standard Export Package
Specification
7.5*7.2*2.5 m
Trademark
Kingstone
Origin
Dongguan City, China
HS Code
8477101090

Product Description

>> Descriptions
Raw Material:Suitable for all kinds of thermoplastic raw materials, foaming or non-foaming, such as PVC and TPR.
Products: Specially designated to manufacture different height full plastic rain boots gumboots and shoes.
>> Machine specifications
Machine model JL-288-2C
Mould-clamping Unit
Work station 10,,12,16
Clamping force TON 220
Opening stroke MM 210
Mould dimension MM 420*320
Height of injection nozzle MM 280
Injection Unit
Injector SET 1
Screw diameter MM 90/95,85/80
Screw L/D ratio L/D 19
Max.injection volume cm3 1500-1700
Injection speed Cm/s 520
Screw rotation speed R.P.M 0-200
Electricity Consumption
Heating power of injector KW 7*2
Hydraulic unit motor KW 22.5,18.5
Total electric consumption KW 55
Temperature control Section 4
Dimension and Weight
Machine dimension (L*W*H)MM 7500*7200*2500
Machine weight KGS 18000
*Note:Above data only for reference.

>> Machine Photos
>> Finished Products
>> Machine drawing
>> Package & Shipping
