Professional Fingerprint Imaging System - Multifunctional & One Click

Product Description

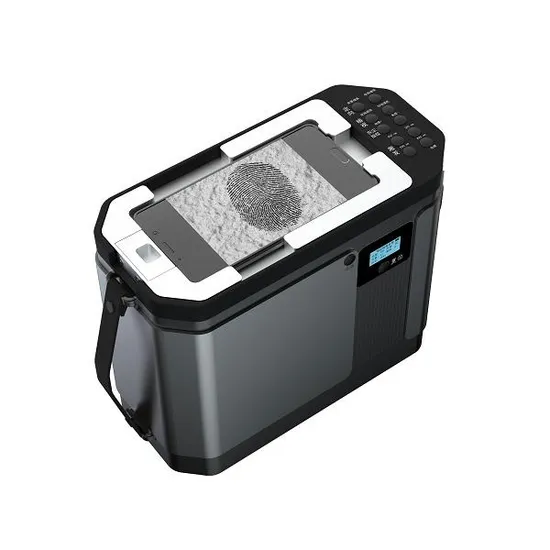

Multifunctional Fingerprint Photography System Model: HWDF20
Product Introduction
The Multifunctional Fingerprint Photography System can directly display fingerprints and fingerprints on various light surface simple and complex background objects, and remove the background to obtain clear fingerprint lines. One click operation and one click extraction are powerful tools for on-site surveyors to quickly discover and extract fingerprints and fingerprints for comparison.
1.Function switching mode: For multi axis electric units, press the button to switch
2.Directional reflection photo mode, non-destructive optical stereo enhancement for smooth fingerprint;
3.oblique dark vision photo mode, for dark smooth surface or a certain pockmarked fingerprint;
4.grazing into the light mode, for dust fingerprint;
5.It integrates multiple functions, including directional fingerprint shooting, dark vision fingerprint shooting, dust fingerprint shooting, bloodstain shooting, and stimulating powder brushing.6.Activate photo mode, 365nm, 450nm, 530nm, and 830nm for brushing powder, infrared, or bloodstain photography
Technical Parameter:

Light source	infrared light, white light, ultraviolet light
Infrared wavelength	830nm
White light color temperature	6000K
Power supply method	DC power supply
Lithium battery capacity	16.8V 3400mAh
Charger	input: AC100-240V 50-60Hz Output: DC5.0V 2A
Charging time	≤ 5H
Working hours	≥ 2.5H
Lifetime	> 100000 hours
Shell material	Made of all aluminum alloy with precision carving processing
Size	≤ 260mm * 120mm * 190mm
Weight	≤ 3kg (including battery)

Actual Shooting Effect:
Credit Card Fingerprint Mobile Phone Fingerprint

---
