Three Phase 380V 440V 1ton 2ton 3ton 5ton Electric Wire Rope Hoist

US$500.00
1-29 piece
US$480.00
30-49 piece
US$450.00
50+ piece

Basic Info.

Model NO.
CD1
Application
Gantry Crane, Bridge Crane, Single Grinder Crane, Small Crane
Type
Electric Hoist
Sling Type
Wire Rope
Lift Speed
8m Per Min
Maximum Lifting Height
9m
Chain Falls
Wire Rope
Certification
CE
Condition
New
Color
Blue
Weight
260kg
Rope Diameter
13mm
Wire Rope
Oil Rope
Voltage
380V
Phase
Three
Power
4.5kw
Motor
100% Copper
Frequency
50/60Hz
Both Limit
up and Down
Trolley Speed
20m Per Min
Transport Package
Wooden Case
Specification
3 ton
Trademark
GSTOYO
Origin
China
HS Code
8425110000
Production Capacity
500 PCS Each Month

Packaging & Delivery

Package Size
110.00cm * 50.00cm * 72.00cm
Package Gross Weight
260.000kg

Product Description

Three Phase 220V 380V 400V 440V Heavy Duty Gantry Crane Bridge Crane 1ton 2ton 3ton 5ton 10ton 20ton CD1 Electric Single Grinder Crane Wire Rope Hoist Product Description

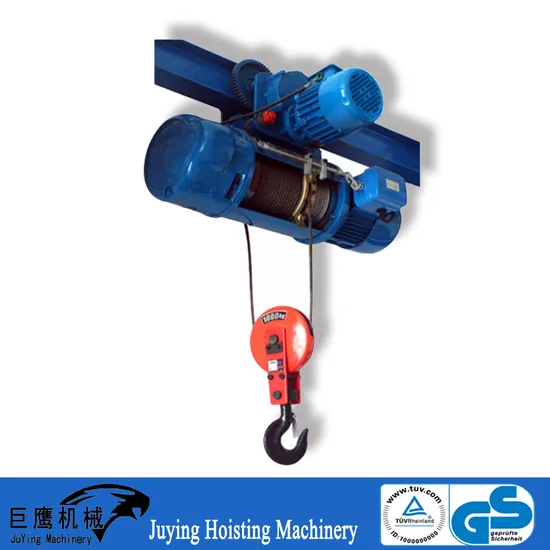

CD1 wire rope electric hoist is a light and small lifting equipment with compact structure, light weight,
small size, universal parts and easy operation.
Reducer: The reducer adopts hard tooth surface transmission design, long life and high mechanical
efficiency.
Motor: The motor uses a conical rotor brake motor. The motor load duration is 25%.
Motor protection: degree of protection: IP54
Insulation class: Class B
Limit: There are upper and lower two-way safety limit devices.
Push button switch: 36V safety voltage switch, according to customer needs, the hoist can be equipped
with a wireless remote control. Product Parameters

Model CD1-0.5 CD1-1 CD1-2 CD1-3 CD1-5 CD1-10
Capacity(ton) 0.5 1 2 3 5 10
Lift height(m) 6 6 6 6 9 9
Lift speed(m/min) 8m each min
Travel speed(m/min) 20m each min
Sizes of Wire rope 6×37-4.8 6×37-7.4 6×37-11 6×37-13 6×37-15 6×37-15
Sizes of I-beam 16-28b 16-28b 20a-32c 20a-32c 25a-63c 28a-63c
Power 0.8Kw 1.5Kw 3Kw 4.5Kw 7.5Kw 13Kw
Voltage(v) 380 380 380 380 380 380
Frequency(Hz) 50 50 50 50 50 50
Phase 3 3 3 3 3 3M

Detailed Photos
