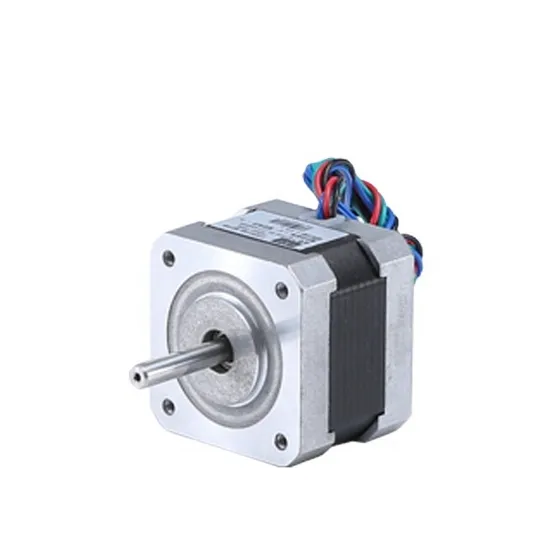

High-Precision 42mm Micro Hybrid Step Motor for Robotics

US$5.00-99.00 1 Piece (MOQ)

Basic Info.

Model NO.

F42-H34

Number of Stator

Two-Phase

Excitation Mode

HB-Hybrid

Function

Control, Driving

Number of Poles

Operate Mode

The Three Single Phase

Type

Hybrid

Certification

Brand

Mige

Usage

Universal

Protect Feature

IP54

Phase

Two Phase

Warranty

3months-1year

Shape

Square

Current / Phase

0.95A

Structure

Synchronous Motor

Power

Transport Package

Packed in Plywood Case or Carton

Specification

42mm

Trademark

mige

Origin

Zhejiang, China

HS Code

85015200

Production Capacity

50000 Piece/Pieces Per Month

Packaging & Delivery

Package Size

14.00cm * 12.00cm * 10.00cm

Package Gross Weight

0.600kg

Product Description

Size 42mm Stepping motor is a brushless, synchronous electris motor that can divide a full rotation into a large number of steps. The motor's position can be controlled precisely, without any feedback mechanism.
Electric Parameters:

Model	F42-H34
Step Angle(°)	1.8
Length L(mm)	34
Holding torque(N.m)	0.16
Current (A/phase)	0.95
Resistance(Ω)	4.2
Inductance (mH)	2.5
Rotor inertia (g.c)	35
Weight (kg)	0.22
Step accuracy	5%
Temperature	80 Max
Environmental temperature	-20 ~ +50
Insulation resistance	100MΩ Min 500 V DC
Withstand voltage	500V AC 1minute

Please contact with us for more detailed technical information.

We can design according to clients' requirement.
