High-Quality V-Shaped Mixer for Industrial Use

Product Description

The V-shape Mixer is a new, efficient, and high-precision mixing equipment suitable for mixing powder or granular materials in industries such as chemicals, food, pharmaceuticals, feed, ceramics, and metallurgy . This machine features a reasonable and simple structure, enclosed operation, and convenient material feeding and discharging (manual or vacuum feeding). The drum is made of stainless steel, making it easy to clean and one of the essential pieces of equipment for enterprises. Both the rotation and revolution are completed by a set of motors and cycloidal pinwheel reducers, ensuring fast mixing. It is particularly suitable for mixing materials with large differences in specific gravity and large mixing ratios. All parts in contact with materials are made of stainless steel.
Due to its excellent structure and reasonable design concept, the V-shape mixer offers advantages such as fast mixing, uniform blending, convenient operation, easy cleaning, durability, compact structure, and high technical content. It is widely used in industries such as pharmaceuticals, food, pesticides, zinc oxide, detergents, veterinary medicine, compound fertilizers, feed, petroleum, metallurgy, building materials, coatings, dyes, pigments, additives, calcium carbonate, biotechnology, ceramics, chemicals, fragrances, seasoning, tea, and many others for mixing powder materials.
Product Features
1. Versatility : Suitable for mixing various materials including powders, granules, and pastes;
2. Gentle Mixing : Ensure uniform blending without damaging delicate ingredients;
3. Efficient Mixing : Achieves thorough mixing in a relatively short time;
4. Easy-Cleaning : Designed for quick and thorough cleaning between batches;
5. Durable Construction : Built with robust materials for long-term reliability;
6. Wide Application : Used across industries such as pharmaceuticals, food processing, chemicals, and cosmetics.
Technical Parameters

Device Model	RXV-50	RXV-200	RXV-300	RXV-500	RXV-1000	RXV-1500
Volume / L	50	200	300	500	1000	1500
Mixing Capacity kg/batch	20	80	120	200	400	600
Mixing Time / min	10-20	10-20	10-20	10-20	10-20	10-20
Drum Rotation Speed / rpm	12	12	12	10	10	10
Motor Powder / kW	0.55	1.1	1.5	2.2	4	4
Overall Dimensions (Length x Width x Height) / mm	1780×650x1850	110x600x1100	1800x650x1850	2500x850x2420	2950x1400x3100	3190x1450x3100
Overall Rotating Height / mm	1450	1850	1850	2450	3000	3100

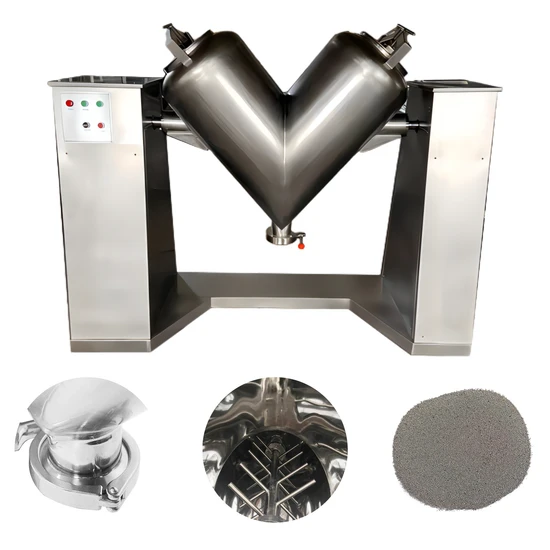

Product Display The Equipment Structure1. Support Frame
2. Support Frame
3. Vessel
4. Inlet
5. Discharge Valve
6. Control Panel
7. Motor
8. Sprocket Application
The Double Cone Mixer can be used in industries such aspowder metallurgy, electrical alloys, magnetic materials, battery powders, pearlescent pigments, chemical industry, medical, and food industry
.About Our Company Shijiazhuang Rongxin Technology Co., Ltd.
was founded in 2007, with its headquarters located in Shijiazhuang, the capital city of Hebei Province. Specializing inthe design and equipment provision of material handling automation system, our company has garnered recognition as a leader in the field, securing numerous patents and accolades, including "National High-Tech Enterprise" and "Innovative Enterprise."
Currently, Shijiazhuang Rongxin Science and Technology Co., Ltd proudly offers an impressive array of advanced products, including dust-free enclosed feeding systems, sealed conveying systems, pneumatic conveying systems, and tube chain conveying systems. Our innovative solutions find extensive applications across various sectors such as the metal materials industry, food processing industry, chemical industry, pharmaceutical industry, and the burgeoning new energy industry.In addition, we boast our own state-of-the-art production facility equipped with mature manufacturing lines, which ensures the reliable quality of all our high-performance equipment. Company Certification

---
