Carbonated Drink Pet Bottle Blow Molding Machine Manufacture

Product Description

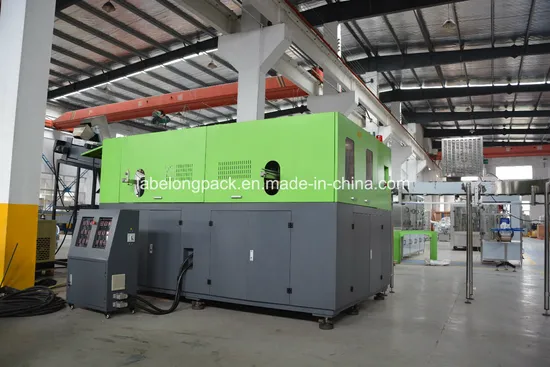

6000BPH Automatic water bottle Blowing machine PET bottle
1. Conveying preforms automatically with conveyor.
2. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
3. High safeties with security automatic-locking apparatus in each mechanical action, which will make the
procedures turn into a state of safety in case of a breakdown in certain procedure.
4. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
5. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
6. Strong clamping force with high pressure and double crank links to lock the mold.
7. Two ways of operating: Automatic and manual.
8. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine
easier to understand.
9. Contamination is avoided for the bottle body.
10. Low rejection rate: Less than 0.2 percent.

Blow mold
Advantage of blow molding machine Use screw of servo driver moving system. Automatic feeding heating and blowing. Patented preform feeding system for easy and safe. Heating system for each lamp adjustment and constant voltage control system. Touch screen human-machine interface for easy operation. Modular component design for easy maintainese Compact design for effective usage of floor space. Intelligent flow control with high pressure valve.
Technical data

Model		L-2000L	L-4000-L	L-6000-L	L-8000-L
Clamping System	Number of cavity(cavities)	2	4	6	8
	Calmping unit(KG)	20000	48000	65000	96000
Theoretical dimension(BPH)		2200	4000	6000	7500
Machine dimension(L*W*H)(m)		2.6*1.8*1.8	3.8*2.0*2.0	5.6*2.2.1.8	6.2*2.2*2.0

Electric component

Name	Brand	Origion
Air switch	Schneider	France
Contactor	Schneider	France
Button	Schneider	France
Photoelectric Switch	Japan	OMRON
Touch screen	Taiwan	WEINVIEW
PLC	Japan	Mitsubishi
Switch	Taiwan	MEANWELL
Servo motor	Japan	Mitsubishi
Servo driver	Japan	Mitsubishi
Heating module	Switzerland	Jiale
Valve	USA	Parker
Cylinder	Taiwan	AirTac

RFQ
Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.

Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A: We offer you the high quality machines with one year guarantee and supply long life technical support.

Q3: When can I get my machines after I paid?
A: The delivery time is based on the exact machine you confirmed.

Q4: How can I install my machines when they arrive?
A: We will send our engineers to your factory to install the machines and train your staffs how to operate
the machines.

Q5: How about the spare parts?
A: After we deal with all the things, we will offer you a spare parts list for you refer.
What we have
Labelong focus on filling, packing & water treatment field, our factory takes up 60000 square meters ,more than 30 Professinal Tehchnicians and workers which is one of the professional & reliable Chinese manufacturers & provider for liquid & semi-liquid filling & packaging machinery, blow molding machines and water treatment systems with reliable quality & pretty good after sale service with CE certification & ISO9000:2001 certification.

No.	Production line category	Capacity
1	Hot filling production line	3,000-36,000BPH
2	Beverage processing System	1,000 Ltrs/H to 10,000 Ltrs/H
3	Bottled water production line	3,000-36,000BPH
4	5L Large capacity bottled water production line	700-5,000BPH
5	Carbonated drink production line	3,000-18,000BPH
6	Pulp juice production line	5,000-22,000BPH
7	Oil Filling line	3,000-10,000BPH
8	Linear Filling machine	300-900BPH
9	Bottlle Unscrambler	Up to 20,000BPH
10	Barrelled water production line	300-2000 bucket/H
11	Water Treatment system	1,000 Ltrs/H to 10,000 Ltrs/H
12	OPP Labeling machine	6,000-24,000BPH
13	PVC Shrink Sleeve Labeling machine	6,000-24,000BPH
14	Automatic Blow molding machine	1,000-7,000BPH
15	Full-automatic Film Wrapper & Shrinker	5-30 Packs per minutes

Workshop
Packing
Contact me for get more information and videos
Mobile: 86-13862027738

---
