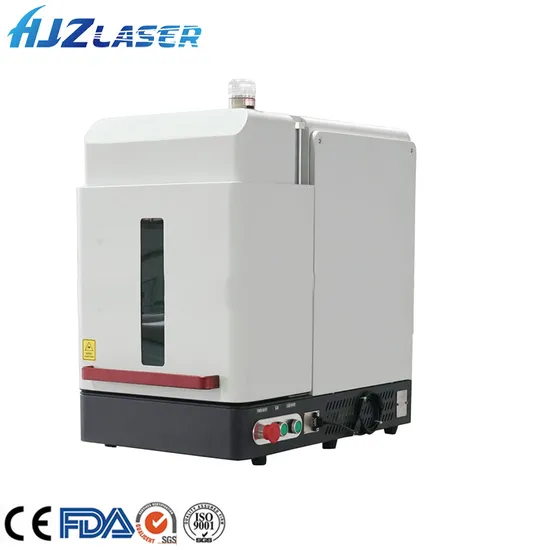

Full Closed Cabinet 20W Fiber Laser Marker on Tumber Yeti Cup Gold Ring

Product Description

Full Closed Cabinet 20W Fiber Laser Marker on Tumber Yeti Cup Gold Ring
Product descriptions :
1. Humanized design: We taken full consideration of the user experience to improve work efficiency and simplify operations of the laser etching metal machine.
2. High-quality imported laser source: Germany IPG 20W laser, stable laser beam, smooth and fine marking lines.
3. High-speed marking: shorten the time for processing the workpiece, and increase the order per unit time.
4. High-efficiency electro-optical conversion: zero-power coupling loss, no consumables, and no maintenance.
5. 10 years of operation life: this fiber laser etching machine for metal can meet the requirements of 24-hour continuous and stable processing.
6. High performance, high reliability control system: friendly interface, stable and reliable system.
7. Low power consumption: low cost, only 0.5 kW/h.
Applicable Fields & Materials:
This fiber laser etching machine is widely used in mobile button, plastic transparent button, electronic
parts, IC, tools, communication products, bathing products, tool accessories, glasses and watches,
jewelry, button decoration for boxes and bags, cookers, stainless steel products and so on.
Technical Data :

Technical parameter
Item / Model	HJZ -DB-01C (20/30/50/60/70/100W)
Laser source	Domestic Raycus(Germany IPG/China CAS/MAX/JPT Mopa color marking for optional)
Laser power	20w, 30w, 50w,60w ,70w,100w
Laser type	Fiber laser
Graphic Format Supported	PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO, DXF
Marking speed	≤9000mm/S
Max.Marking Depth	≤0.4mm
Laser Wavelength	1064nm
Marking lines	1-10 marking lines(in the marking area)
Minimum line width	0.01mm
Minimum character	0.15mm
Resolution ratio	0.01mm
Graphic format supported	BMP, PLT, DST, DXF, AI
Software supported	TAJIMA, CorelDraw, Photoshop, AutoCAD
Equipment Dimensions	420*320*800mm
Net Weight:	150kg (different model has different weight,detailed can be confirmed with sellers)
Unit Power	≤500W
Optional Spare Parts	Rotary/Protection glasses/outside red light/night light and so on.

Pre-sale service:
1) According to customers demands, provide relevant technical guidance.
2) Assist customers to design and make laser engraving/cutting solutions considering technical feasibility.
3) Provide equipment demonstration for customers to investigate, make samples and do test, etc.
After-sale service:
1) 1 year warranty for laser metal marking machine;
2) Offer lifelong repair;
3) Engineers available to service machinery overseas.
4) Multi language service;
5) Offer 24 - hour technical support.
Training can be processed in the following ways:
1) Workers of customers can come to our factory in Wuhan, China to get the most professional hand-by-hand training.
2) We can send engineers to customers' country and do training for workers in customers' target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
3) Remote training through Internet tools like Team-viewer, Skype and other instant communication software.

---
