HDPE Geocell Sheet Production Line Machine

Product Description

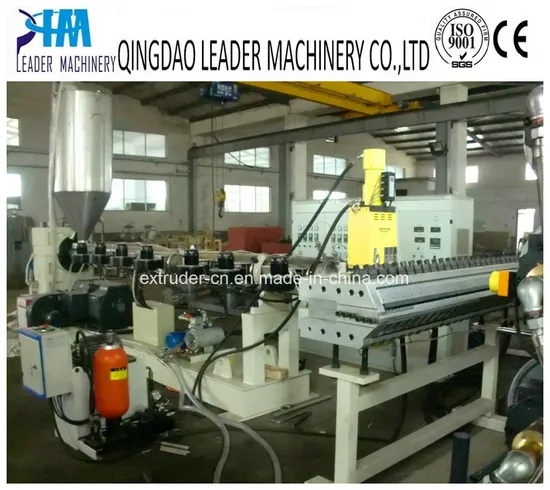

HDPE geocell sheet production line machine
Geocell is a new type of high strength geosynthetics, which is popular in domestic and abroad.
It is a kind of three-dimensional network structure shaped by high-strength HDPE sheets through ultrasonic welding of high strength.
Currently, it is being widely used in construction, such as highway,railway, bridge, dyke, etc.
PART 1 MAIN APPLICATIONS:
1.To stable the roadbed of highway/railway.
2.To bear the load of dyke, retaining wall.
3.To improve the watercourse of shallow river.
4.To support the pipeline and sewer.
5.To be used as independent wall, wharf and breakwater, etc..
6.To be used for the regulation of the desert, beaches, river bed and river bank.
PART 2: SHEET SPECIFICATIONS:
Product specification: Sheet width: 1000-3000mm, sheet thickness: 1.5-2mm
PART 3: THIS LINE CONSISTS OF:

PAR T1 THIS LINE CONSISTS OF (COMPULSORY)
1	Automatic vacuum feeding machine			1 set
2	High efficiency single screw extruder (120/33)			1 set
3	Hydraulic exchanging unit			1 set
4	T-type /hanger type die head (JC-Times brand)			1 set
5	Three Roller Calendars (alloy steel material )			1 set
6	Rollers thermoforming machine			1 set
7	Cooling frame and edge cutting unit			1 set
8	Haul off machine			1 set
9	Plastic cutting machine-guillotine			1 set
10	Twin position sheet winder			1 set
11	Stacker			1 set
12	Electrical cabinet (ABB,Omron, RKC,Schneider, Siemens etc)
13	Spare parts			1 set
PART 2 ACCESSORY MACHINE PARTS (OPTIONAL)
1	Air compressor		1 set
2	Industrial water chiller		1 set
PART 3 SHEET SPECIFICATIONS
1	Sheet width	1000-3000mm
2	Sheet thickness	1.5-2mm
3	Type	single layer/multi layer sheets
4	Raw material	1. Can be virgin material 2. Can be recyclable material
PART 4 SHEET APPLICATIONS
1	construction, such as highway, railway, bridge, dyke, etc.
2
PART 5 PAYMENT, DELIVERY AND AFTER SALE SERVICES
1	Payment terms	40% for prepayment by T/T, 60% for balanced payment by T/T, or L/C can be acceptable
2	Delivery time	70 days after receipt of prepayment
3	Packing method	Wooden cases/pallets with stretching films
4	Guaranteed time	18 months for mechanical parts, 12 months for electrical parts
5	After sale service	Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable
6	Contact	Ms Lilly Zhou (mob: 0086-15266238607)

PART 5 DELIVERY, PAYMENT AND OTHERS SERVICES
1. delivery time: 90 days after receiving the deposit
2. payment terms:30% for the prepayment by T/T and 70% for the downpayment by T/T before delivery or irrevocable L/C at sight can be available, too.
3. Guaranteed time: 18 months for the machenical parts and 12 months for the electrical parts.
4. Service: we will send engineers to customers' factory to help them install, test the machine.
5. Contact: Ms Lilly Zhou,
PART 6 COMPANY INFORMATION AND MAIN PRODUCTS:
PART 7 COMPANY CERTIFICATIONS:
PART 8 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.
PART 9 COMPANY OVERSEA SHOWS
PART 10 OTHER KINDS OF PLASTIC SHEETS/PLATES EXTRUSION LINE RECOMMENDATION :
1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 300-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity:300-800kg/h
Application: Vacuum forming, bathtube, etc.

5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads., decoration, roofing, etc.

7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity:200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

9. PVC free foam/celuka foam board extrusion line
board width: 1220mm, thickness: 1-10mm, 3-25mm
board application: decoration board, advertising boards, exhibition boards
extruder model: SJ-80/156 conical twin screw extruder
max capacity: 350kg/h
certifications: CE, ISO9001-2008

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.


Best regards!
Sincerely yours,
Lilly Zhou, Sales Manager

Qingdao Leader Machinery Co.,Ltd
Address: South of Yangjialin, Beiguan, Jiaozhou, Qingdao, China
Postal No.: 266300
Tel/fax: 0086-532-86620998, 86622373, 82278979
Website: http://extruder-cn.en.made-in-china.com
Mob/whatsapp/wechat: 0086-152 6623 8607 Ms Lilly Zhou
Email: lilyzhou@extruder-cn.com, lpm20102011@hotmail.com

---
