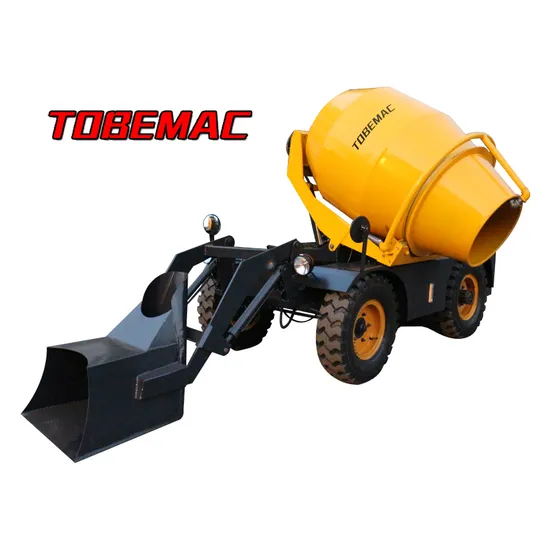

Self Loading Concrete Mixer Truck 500L for Capacity

Product Description

1.Why choose us?TOBEMAC----CHINA Leading Construction Machinery Manufacturer We are manufacturer of Concrete Mixers Since 1991. We are certified by SGS;BV;SONCAP;PVOC;CE; ISO 9001:2015 We have a Professional Construction Machinery workshop which covers an area of 10000 sqm and its daily output for CONCRETE MIXER is 50 sets , so we can assure you the punctual delivery. Our main products include all kinds of Diesel Concrete Mixer,Electric Concrete Mixer,Concrete Mixer Truck, Hoisting Machinery, Road Machinery,Compactor Machinery,Block Machinery , and etc. Our company is near the NINGBO port , you are very welcome to come to our company.
2.Products Specification:

Model	TOBEMAC Brand CMT500 self loading concrete mixer truck with factory price
Total Drum Capacity	800 L
Self Loading Shovel Capacity	250 L
Water Tank Capacity	200 L
Productivity	8 batches / 4 m3/h
Max. Drum Slewing Degree	180°
Drive Type	4×4
Transmission Mode	Manual Transmission, 4 F+1 R
Engine Option	Brand 1:QUANCHAI, QC2105, Diesel Engine (28kw) Brand 2:DEUTZ, F2L912 Diesel Engine (20kw)
Shovel and Drum Operation	By Reversing Valve
Tyre Size	8.25-16
Self Weight	2800kg
Overall Size	4700×1850×3000mm
Container Loading Plan	3 Sets Per 40 HQ

3.Product Application
The CMT500 Self Loading Concrete Mixer Truck with Diesel Engine Power is a self loading concrete mixer of double conical drums which discharge concrete by tilting drum, suitable for mixing plastic and semi-dry & hard concrete. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.5 cubic meters of concrete.
The CMT500 Concrete Mixer is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.
4.Main Features
1) Saving time and labor
2) Saving concrete transporting cost
3) Mobile and highly motorized on site, more efficient
4) Low maintenance cost
5) High reliable and durable
6) Easy operation and high intelligent
7) Closed circuit hydraulic system, more powerful and reliable.
5.Production Flow
6.Packaging&Delivery

	Size	4700 (L) * 1850 (W) * 3000(D) mm
	Weight	2800 kg
	Packaging Details	The normal package is by big PLASTIC BAG . 3 Sets Per 40HQ

7.Our service
1.Installation, debugging, operators trainning;
2.Maintanence:
A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;
B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
C. Call us at any time if you have problems about our concrete mixers;
D. If needed, we will send engineers to your site to solve your problems.
3.Providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
4.Spare parts supply;
8.Contact with us!
