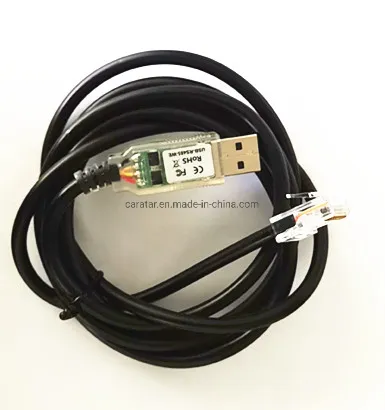

Ftdi USB RS485 Serial Communication Cable with Rj11, RJ45, 8p8c, and 10p10c Connectors

Product Description

RS485 communication cable,telecommunication cable for communication network/
FTDI USB RS485 Adapter Cable RS485 to USB Converter
FT232rl Chip Cable USB RS232 Cable USB RS485 to Rj11 Cable, RJ45, 8p8c, 10p10c

Baud Rate:	3Mbaud
Cable Length - Imperial:	6ft
Cable Length - Metric:	1.8m
Chip Type:	FT232R
Conversion Type:	USB to RS485 Converter
Converter Connector Type:	Free / Stripped End

Product Description
FTDI USB RS485 CONVERTER CABLE, USB TO RS485 SERIAL WIRE END WIN8 WIN10 ANDROID
USB RS485 adapter
USB2.0. full speed 12M support
FT232 USB RS485 cable, signals compatible with USB-RS485-WE-1800-BT
With 2 LEDs for data+, data- transfering
Red-VCC(5v),Black-GND,White - Data+, Green - Data-
FT232RL + SP485LEEN chip
Support Android, Support Win 10, 8,8.1, Win 7, XP, 2000, Linux, Mac OS
Integrated 1024 byte EEPROM, support Vendor ID re-write,support Mprog3.5
Support FTDI VCP driver and D2XX driver
Half duplex, non-isolated
300 ~ 1Mbps baud rate
Up to 5km distrance transfering
1.8mtr in length.
ABS USB housing, openable for testing
100% double test
PE zipper lock bag for each

ftdi usb rs485 cable, compatible usb rs485 we 1800 bt
half duplex, non isolated
Standard 10k pull up & down resistor, 120R terminal resistor
usb2.0 standard, full speed 12M support
On-board signals: Data+, Data-, VCC5V, GND
ft232rl chip for USB UART signals, and SP485LEEN for UART to RS485 signals shift
6 core, 26AWG, bare copper, PVC jacket, OD5.0mm
24AWG wire not suitable for RJ45/rj12 etc
1.8mtr in length
Compatible with ftdi usb-rs485-we-bt signals


Introduction
The USB 2.0 to RS485 Cable provides a simple and easy to connect between the USB and RS485 ports interface. Ideally for PC, thin client or servers to provide instant RS485 ports expansion via USB ports.

USB to RS485 industrial intelligent converter,no power supply needed,plug-and-play
USB485 is a kind of USB to RS485 industrial intelligent converter. It is the best solution for the communication between USB and RS485. Compared with RS232 to RS485 converter, USB to RS485 converter has many advantages.


Product Features
RS-485 interfaces supported.
RS-485 interface DB PIN connector .
Maximum RS-485 cable length: 1200m
Transmission rate 300bps to 1Mbps.
Maximum number of devides in the RS485
network:Half Duplex to 32 devices
Remote wake-up and power supply management supported.
+/-15KV ESD Protect.
Direct USB power without external power supply.
Working environment: -40 deg.C to 85 deg.C, relative humidity 5% to 95%.
Windows95/98/2000/XP and NT-IMAG supported.
Introducing the Ftdi USB RS485 Serial Communication Cable with Rj11, RJ45, 8p8c, and 10p10c Connectors, a cutting-edge solution for seamless data transfer and communication. This high-quality cable is designed to meet the demands of cross-border e-commerce platforms, combining industry expertise with marketing know-how to ensure your product stands out from the competition.
The USB Uart 485 to RJ45 Cable/USB Cable to LAN Adapter/USB RJ45 Serial Cable is a versatile and reliable tool that enables efficient and secure communication between devices. With its USB interface, it provides a convenient and universal connection to a wide range of devices, making it compatible with various systems and applications.
Featuring Rj11, RJ45, 8p8c, and 10p10c connectors, this cable offers flexibility and versatility in connecting different devices and networks. Whether you need to connect to a local area network (LAN) or establish a serial communication link, this cable has got you covered.
Crafted with precision and attention to detail, this cable ensures reliable and stable data transmission, minimizing the risk of errors or disruptions. Its high-quality construction guarantees durability and longevity, making it a cost-effective investment for your business.
With its formal and professional tone, this product description highlights the key features and benefits of the Ftdi USB RS485 Serial Communication Cable. By providing specific details about the product, such as its compatibility with different connectors and its ability to facilitate seamless data transfer, potential customers can make an informed decision about its suitability for their needs.
In conclusion, the Ftdi USB RS485 Serial Communication Cable with Rj11, RJ45, 8p8c, and 10p10c Connectors is a reliable and versatile solution for efficient data transfer and communication. Its high-quality construction, compatibility with various devices, and seamless connectivity make it an essential tool for businesses operating in the cross-border e-commerce industry. Invest in this cable today and experience enhanced productivity and performance.

---
