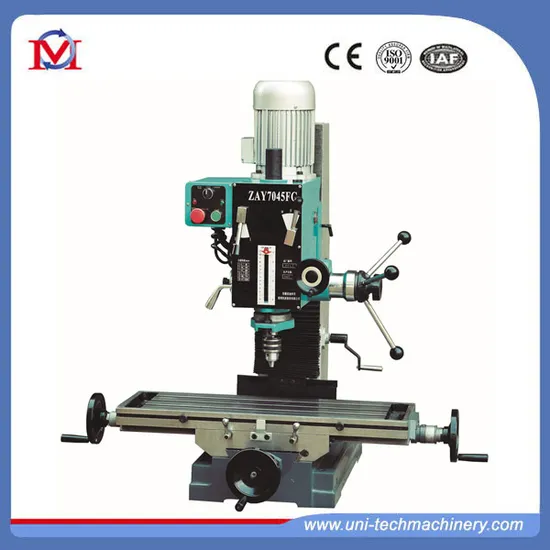

Mini Drilling and Milling Machine (ZAY7045FG-1)

Product Description

Mini drilling and milling machine (ZAY7045FG-1)
Main Features:
1.Gear driven head 6 speeds
2.Dovetail vertical Z-axis
3.Mill head tilts to ±90º from vertical with digital display
4.Large 730 x 210mm ground work table with T-slots
5.Adjustable leadscrew nuts eliminating backlash on both axis
6.Fine feed hand wheel operating quill feed
7.Forward and reverse on/off switch
8.Digital tilting head gauge
9.3MT spindle with 75mm diameter quill
10.Adjustable table and drill length stops
11.Rack and pinion wind-up head
12.Rear slide-way cover and slide clamps on all axis
13.Spindle lock for quill
14.Table lock on both axis
15.Metric dial graduations @ 0.05mm for X & Y axis


Standard accessories:
1.Allen srench
2.Wedge
3.Tie rod

Optional accessories:
1.Drill chuck
2.Milling cutter holder
3.Mill chuck
4.Power feed attachment
5.Auto-tapping electrical
6.Paraller vise
7.Working lamp
8.Coolat system
9.Machine stand and chip tray
10.Clamping kits
Specification:

SPECIFICATION
ITEM	ZAY7032FG/1	ZAY7040FG/1	ZAY7045FG/1
Drilling capacity	32mm	40mm	45mm
Max.boring diameter	50mm	60mm	70mm
Max Face mill capacity	63mm	80mm	80mm
Max End mill capacity	20mm	32mm	32mm
Max distance from spindle nose to table	450mm	450mm	450mm
Min distance from spindle axis to column	260mm	260mm	260mm
Spindle travel	130mm	130mm	130mm
Spindle taper	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Step of spindle speed	6	6	6
Range of spindle speed 50Hz	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Auto-feeding step of spindle	6	6	6
Auto-feeding amount of spindle	0.06-0.30mm/r	0.06-0.30mm/r	0.06-0.30mm/r
Swivel angle of headstock (perpendicular)	±90°	±90°	±90°
Automaticlly lifting of spindle ( As customer's requirement)	240mm/min	240mm/min	240mm/min
Power feed attachment for table( As customer's requirement)	stepless	stepless	stepless
Table size	800×240mm	800×240mm	800×240mm
Forward and backward travel of table	175mm	175mm	175mm
Left and right travel of table	500mm	500mm	500mm
Motor Power	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Voltage/Frequency	As customer's requirement	As customer's requirement	As customer's requirement
Net/Gross weight	320kg/370kg	323kg/373kg	325kg/375kg
Packing size	770×880×1160mm	770×880×1160mm	770×880×1160mm
Loading amount	36pcs/20'container	36pcs/20'container	36pcs/20'container
