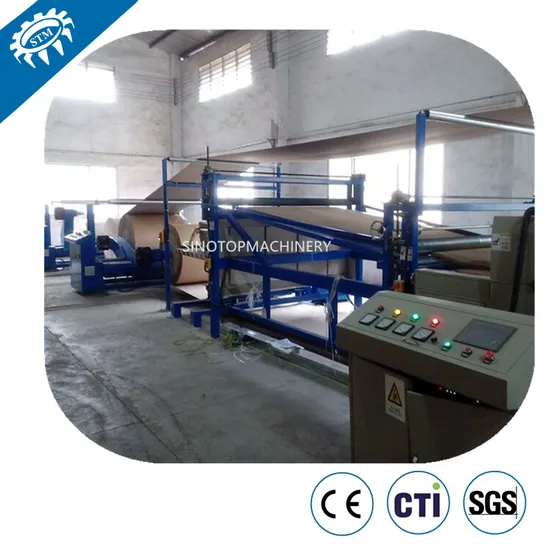

Simple and High Efficient Honeycomb Manufacturing Process Machine

Product Description

We engaged in HONEYCOMB LAMINATING CORE AND CARDBOARD MACHINE, EDGEBOARD MACHINE, SLIP SHEET MACHINE, DUNNAGE BAG MACHINE, FLAT BOARD MACHINE, SLITTING MACHINE, etc, OEM is avaliable and welcome.
Production Name
Automatic honeycomb laminating cardboard making machine
Packge & Delivery
1.Wooden case or transparent strength film and corner board to protect
2. Delivery time: 30-70days
Production Line
1.ENDLESS HONEYCOMB CORE:Paper Roll Setting--Feeding--Gluing & Alignment--Pressing & Hole Making--Core Gluing--Core Cutting--Stacking
2.LAMINATION:Paper Roll Setting--Core loading--Core Expanding & Heating--Gluing--Lamination & Cold Pressing--Lamination & Drying--Cold Pressing--Board Slitting--Board Cutting--Conveyor
3.PAPER HONEYCOMB PANEL in one process:Paper Roll Setting--Feeding--Gluing & Alignment--Pressing & Hole Making--Core Gluing--Core Cutting--Conveyor--Core Expanding & Heating--Gluing--Lamination & Cold Pressing--Lamination & Drying--Cold Pressing--Board Slitting--Board Cutting--Conveyor
Techinic Parameter
Min width: 1300mm
Max automatic cutting length:10m
Speed: 25m/min
weight: ≥120g/m
Thickness of honeycomb cardboard:5mm-10mm
Cutting accuracy:+ 1mm/min
Total power: 128kw(including heating part ), 80kw without heating
Moisture content: ≤12-16%
Way of heating: by electricity
Hydraulic pressure paper holder, controlled by air pressure
Mulilayer guling system for double sides to both core and surface paper
Advantage of HONEYCOMB CORE MACHINE
1.honeycomb machine adopts full Hydraulic shaftless paper holder, it is more convenient to operate; and it uses automotive-type disc brake structure which can stable control the tension. The overall uses of casting structure, the mechanical properties more stable.
2. high speed horizontal cutting honeycomb machine, which don't touch the gluing line while cutting, and the core paper feeding into cutter are stable. We use imported cutter which is durable, and imported high-precision rails which has high cutting precise.
3.The Synchronization cutting mechanism adopts servo tracing which has high cutting accuracy; it adopts Taiwan ball screw which makes the walking freely; By using imported high-precision rails, it can move flexible and cutting with high-precision.
Usage and Funcation
Brief Intruduction of US
Factoy locates in WUXI,CHINA, it is a new factory comes from ZHONGJIANTE enterprise, one is in wuxi for production base and one office in suzhou for sales center who' s quite near shanghai port. It is full of exporting experience paper packaging machine to JAPAN, DUBAI, FINLAN, BRAZIL.
Best quality and best service to be NO.1 and make the top one in the world.
Warranty
One year wanrranty, and whole life after sale service. 24 hours servie.
Main Products
Honeycomb machine, edgeboard machine, slitting machine, slip sheet machine, automatic dunnage bag machine, flat baord machine, gluing machine, corrugated machine,ect
Relevants products
Honeycomb core, honeycomb cardboard, corner board, edgeboard protector, angle board, slip sheet, anti-slip sheet, flat board, dunnage bag, air bag.

TECHNICAL PARAMETER
NO	ITEM	SPECIFICATION
1	Model	ZFX 1300	ZFX 1600	ZFX 2000
2	Max width of panel	1300mm	1600	2000
3	Paper holder	Hydraulic or mechanic	Hydraulic or mechanic	Hydraulic or mechanic
4	Core shelf	Automatic lifting	Automatic lifting	Automatic lifting
5	Production speed	25m/min	25m/min	25m/min
6	Max length of cutting	10m	10m	10m
7	Paper demanding	≥120g	≥120g	≥120g
8	Thickness of panel	5-100mm	5-100mm	5-100mm
9	Cutting accuracy	±1mm/min	±1mm/min	±1mm/min
10	Dehumidifying	yes	yes	yes
11	Heating	Heating panel and infrared	Heating panel and infrared	Heating panel and infrared
12	Moisture	14%	14%	14%
13	Gluing	Core or surface	Core or surface	Core or surface
14	Gluing roller	Precision control	Precision control	Precision control
15	Gluing roller control	Pneumatic swing	Pneumatic swing	Pneumatic swing
16	Cutting drive	servo	servo	servo
17	Blade	online sharpen	online sharpen	online sharpen
18	Cutting method	Up to down	Up to down	Up to down
19	Workers	1-2 person	1-2 person	1-2 person
20	Total power	128KW	128kw	128kw
21	Production capacity	19200m2	19200m2	19200m2
22	Overall size	L43000*W2500*H2500mm	L43000*W2500*H2500mm	L43000*W2500*H2500mm
23	Weight	27Ton	28Ton	29Ton

---
