500*250mm 1020ahr High Precision Articifical Manual High Speed up and Down Handwheel Feed Hydraulic Surface Grinder Grinding Machine

Product Description

Product Description

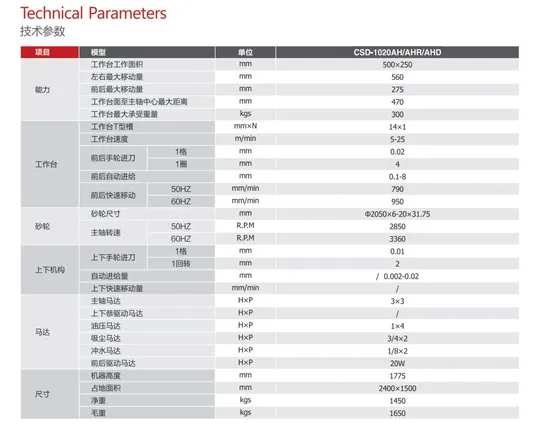

PRODUCT SPECIFICATIONS

Mountings	Specifications		Unit	CSD-1020AH/ AHR/ AHD
Ability	Table Dimensions		mm	500×250
	Maximum forward and backward movement		mm	560
	Maximum left-right movement		mm	275
	Distance between spindle center and work surface		mm	470
	Maximum bearing weight of working table		kgs	300
Work Table	Table T-slots		mm×N	14×1
	Table speed		m/min	5-25
	Front and rear handwheel feed	a check	mm	0.02
		a round	mm	4
	Auto-supplying from front to back		mm	0.1-8
	High speed moving from frong toback	50HZ	m/min	790
		60HZ	m/min	950
Grinding Wheel	Grinding Wheel Size		mm	Φ205×6-20×31.75
	Speed of mainshaft	50HZ	R.P.M	2850
		60HZ	R.P.M	3360
Upper and lower mechanism	Up& down handwheel feed	a check	mm	0.01
		a turing round	mm	2
	Auto-supplying volumn		mm	/ 0.002-0.02
	High-speed mouing dimension from up to down		mm/min	/
Motor	Spindle motor		H×P	3×3
	Drive motor up and down		H×P	/
	Drive motor up and down		H×P	1×4
	Vacuum motor		H×P	3/4×2
	Dust catching motor		H×P	1/8×2
	Back and front driving motor		H×P	20W
Machine Size	Mechanical height		mm	1775
	Occupied area		mm	2400×1500
	Net weight		kgs	1450
	Gross Weight		kgs	1650

Products Details: The Transtar High Precision Manual Grinder Machine is a premier offering from Dongguan TranStar Machinery Co., Ltd. Designed for ultimate precision and reliability, this machine is perfect for a variety of grinding applications. It boasts advanced features and an ergonomic design to ensure seamless operation and exceptional results every time. Whether you are in the automotive, aerospace, or general manufacturing industry, this grinder machine delivers unparalleled performance and durability. Elevate your production capabilities with the Transtar High Precision Manual Grinder Machine, where innovation meets excellence.

---
