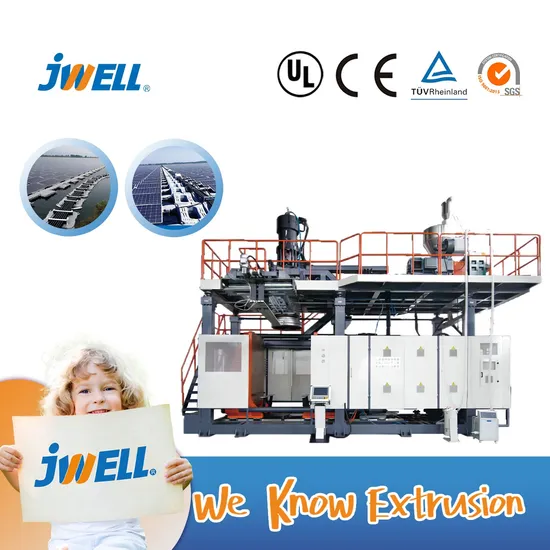

Blow Molding Machine PV Floating Blow Molding Machine

Product Description

Product Description
Product Parameters
Descriptions:
1.Suitable for producing different kinds of blow molding PV floating
2.Optional bottom sealing,product eject,core-pulling movement ele
3.Adopt high output extrusion system,accumulating die head
4.According to the different product size, customized theplaten type and size
5.Hydraulic Servo control system
6.Optional double layer co-extrusion system

Model	Unit	BM500	BM1000
Die head structure		Accumulating type
Main screw diameter	mm	120	135
Max plasticizing capacity (PE)	kg/h	350-450	550-650
Driving motor	Kw	132	160
Accumulating volume	L	26	45
Oil pump motor power	Kw	30	45
Clamping force	KN	800	1800
Max space between platen	mm	500-1400	700-1900
Platen size W*H	mm	1020-2400	1600*2400
Max.mould size	mm	800-2500	1500*2500
Heating power of die head	Kw	25	38
Machine dimension L*W*H	m	8.5*5.5*5.8	10.28*6.2*7.3
Machine weight	T	45	63
Total power	Kw	240	302

Certifications
More information,link below:
https://jwellmachine.en.made-in-china.com/
Company Profile
Jwell was founded in 1997, China Plastics Machinery Industry Association vice president unit, plastic extrusion equipment, chemical fiber spinning complete sets of equipment manufacturers. The production bases of Jwell company cover about 7,000,000 square meters and are consisted with 8 parts, which are located in Jiading district of Shanghai where the head office of the company locates, Haining and Zhoushan City of Zhejiang Province, Taicang City and Liyang City of Jiangsu Province, Chuzhou City of Anhui Province and Thailand. The company has 26 professional companies and nine large-scale gold processing plants and three heat treatment nitriding plants, with an annual output of 3000+ sets of high-grade plastic extrusion production lines and other complete sets of equipment, marketing in more than 120 countries and regions.
Jwell has a high-quality team and an experienced team of mechanical and Electrical Commissioning Engineers, as well as an advanced machining base and Standard Assembly Workshop.
Our Advantages
Workshop Processing
Quality Control
Exhibition
Packaging & Shipping
FAQ
Q1. What about the payment way?
A1. By TT, L/C at sight or ****** trade assurance. 30% down payment should be paid after contract is valid, 70% balance should be paid before shipment.
Q2. Installation and stuff training available from you?
A2. Yes, we have rich engineers around the world which can send to your factory and train your workers. Also we can online guide your members.
Q3. How long is the guarantee?
A3. We offer you high quality machines with 12 months guarantee and reply you as soon as possible within 6 hours.
Q4. If the machine some parts is broken one day, how can we get help from you?
A4. We will send you spare parts free of charge If they are in warranty, not including easy-broken parts. For easy-broken parts, we will only charge a cost fee.
Q5.How does your factory do regarding quality control?
A5.We have passed the IS09001:2000 Quality Management System and CE certificate and we have a special QC department in charge of products' quality. If you also need other certificates, we also can help to apply.
Q6. What is your packaging?
A6. Our conventional packaging is: After doing the anti-rust treatment, wrap the plastic film around the machine and then fix the machine on the wooden bracket.
Q7. How can we check the machines before delivery?
A7. We can provide online checking when testing the machine on site. We will take and prepare detailed testing videos for your checking before the delivery. We accept third-party testing. Except above points,we will provide detailed testing report.

---
