Big Size 40mm Capacity Hydraulic Radial Drilling Machine (Z3040X10/1)

Product Description

Product Description

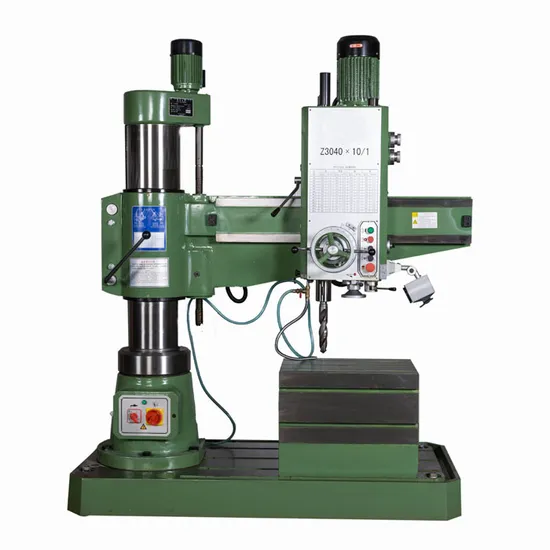

Big size 40mm capacity hydraulic radial drilling machine (Z3040x10/1)
Main features: Inner-outer column. Mechnical clamping for the column and Hydraulic Speed Changing. Spindle with auto-feeding. coolant, work light, available. Spindle Box machined by machining center.
Product Parameters

Specification of our radial drilling machine Z3040x10/1:

Model	Z3032/40×10/1	Z3050X12/1
Max.Drilling capacity (mm)	32/40	50
Distance spindle axis to column generating line (mm)	300-1000	320-1250
Diameter of column (mm)	240	350
Spindle taper	MT4	MT5
Spindle travel (mm)	280	315
Spindle speeds range (r/min)	32-2500	25--2000
Spindle speeds series	16	16
Range of Spindle feeds (r/min)	0.1--1.25	0.04--3.2
Mpindle Spindle feeds	8	16
Max.Distance spindle nose to working surface of base (mm)	320--900	350-1220
Dimension of worktable (mm)	600X450X450	630X500X500
Dimension of base (mm)	1710X800X160	2050X1000X200
Overall Size (mm)	1760X800X2050	2150X1060X2650
Power of Main motor (kW)	2.2	4
G.W/N.W (kg)	1920/1830	3250/3000
Packing dimension (cm)	187X97X220	240X112X252

Standard Accessories
1.Box shape worktable
2.Taper Sleeve
3.Tool releasing wrench
4.Drift
5.Eyelet bolts
Optional Accessories:
1.Quick change chuck
2.Tapping Chuck
3.Grease Gun Detailed Photos

Warranty:
What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
