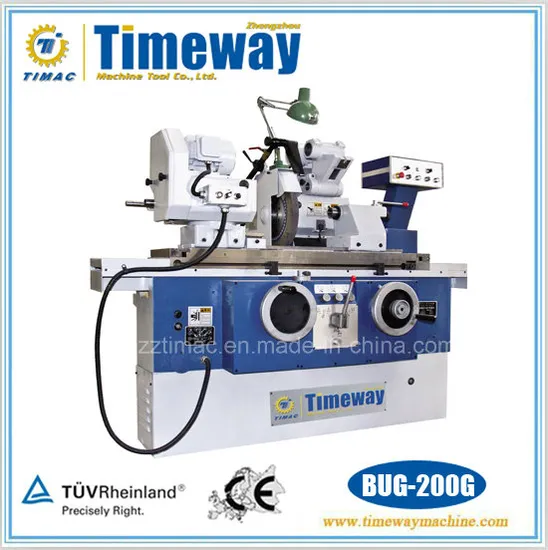

Bug-200g High Precision Universal Cylindrical Grinding Machine

Product Description

High Precision Universal Cylindrical Grinding Machine
BG-200G BGB-200G BUG-200G BUGB-200G

Features and Performance:
*With the screw pump adopted in the hydraulic drive system and it gains features of smooth running and low running noise.
*Equipped with sleeve type big conical degree hydrodynamic bearing shafting with integral bearing bush in wheel head, high rotary precision and rigidity are realized.
*The feeding guideway uses antifriction & plastic-filming guideway, thus promoting the smoothness and vibration resistance of low-speed operations.
*Besides the advantages of high machining accuracy, reasonable overall layout and attractive appearance, the operating handles of the machine are centralized arranged and viesualization, thus to make the machine easy to control and safe to operate.
*With the function of semi-automatic plunge-cut grinding and longitudinal grinding controlled by the sizematic grinding or automatic measuring instrument, the machine of BGB/BUGB type (high-precision semi-automatic) can be used for processing small lot or batched high precision parts.
*For the BGB/BUGB type machine (high-precision semi-automatic), all the grinding functions and sequence of operation in the processing cycle are controlled by PLC.
Main Accessories:
*Balancing mandrel
*Wheel balancing stand
*Three-jaw chuck(Only for universal machines Φ130mm)
*Internal grinding attachment(Only for universal machines)
*Wheel flange
*Coolant tank (Optional magnetic coolant separator is available)
*Stand grinding wheel dresser
Special Accessories:
*Closed center rest(Φ10-Φ75mm)
*Open center rest(Φ5-Φ50mm)
*Four-jaw chuck(Φ160mm)
*Automatic measuring device(For semi-automatic machines)
*Paper filter(High precision machine tool accessory)
*Magnetic coolant separator

Technical Parameters

Specifications		Units	BG-200G BGB-200G			BUG-200G BUGB-200G
			*500	*750	*1000	*500	*750	*1000
Height of center		mm	125			125
Distance between centers		mm	520	765	1050	520	765	1050
Maximum swiveling diameter		mm	240			240
Maximum grinding length		mm	500	750	1000	500	750	1000
Range of external grinding		mm	5-200			5-200
Range of internal grinding		mm	-			13-80
Maximum internal grinding depth(over 45mm)		mm	-			125
Maximum workpiece weight between centers		kg	50
Grinding wheel	OD.*W*ID.	mm	400*(32-50)*203
	Maximum linear speed	m/s	35
Swiveling angle of worktable	Clockwise	°	9	8	3	9	8	3
	Counter-clockwise	°	9	8	7	9	8	7
Taper hole of spindle	Work head		Morse4
	Tailstock		Morse4
Total power		Kw	7			7.5
Net weight		kg	2500	3000	3500	2500	3000	3500
Gross weight		kg	3100	3600	4100	3100	3600	4100
Overall dimensions	Length	mm	2800	2900	3800	2800	2900	3800
	Width	mm	2200
	Height	mm	2200

Working Accuracy

Inspection content	Sketch oftest-piece and machining condition(mm)		Inspection item	Units	BG-200G BGB-200G			BUG-200G BUGB-200G
					*500	*750	*1000	*500	*750	*1000
Grinding accuracy of testpiece between centers	L=150 d=50		Roundness	mm	0.0005			0.0005
	L=200 d= 60
	L=350 d=35		Consistency of the diameter in longitudina section	mm	0.003		-	0.003		-
	L=750 d=75				-		0.005	-		0.005
	-		Roughness	um	Ra≤0.01			Ra≤0.01
The grinding accuracy of short testpiece on chuck	L=30 d=60		Roundness	mm	-			0.002
	-		Roughness	um	-			Ra≤0.04
The accuracy of testpiece internal grinding on chuck	L=50 d=30		Roundness	mm	-			0.002
	L=100 d=60
	-		Roughness	um	-			Ra≤0.04
Accuracy of testpiece plunge cut grinding	L=30 d=25		Consistency of batched parts diameter after grinding	Fixed distance grinding: 0.01/20 pieces Automatic measuring device: 0.004/20 pieces
	L=30 d=40

Layout Plan(Unit: mm)

Max. grinding length	A	B	C
500	1500	1800	2400
750	2100	2290	3150
1000	2500	2800	3900

The foundation depth is determined by the property of soil and should not be less than 400mm.
