Official 80t/H Xap83 Asphalt Mixing Plant Asphalt Drum Mix Plant for Sale

Product Description

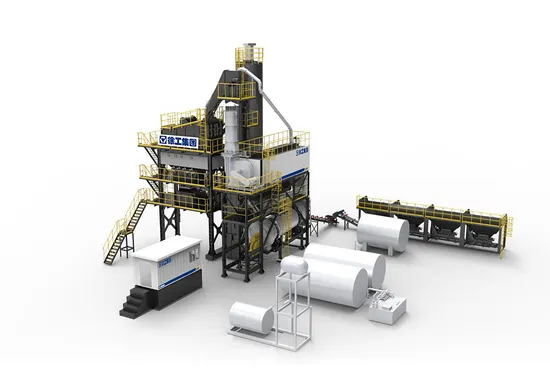

XAP Series Asphalt Mixing Plant
XAP83 Rated productivity (t/h) 80 Mixing capacity (kg/patch) 1250 Asphalt (%) 0.2 Powder (%) 0.3 Aggregate(%) 0.3 Total power(KW) 260 Maximum single power(KW) 2*18.5 XAP83 Asphalt Mixing Equipment PRODUCT FEATURE XAP83 Asphalt Mixing Equipment is an international advanced product developed independently forproducing asphalt mixture, modifed asphalt mixture and others at all levels and be used in supporting withhot recycling equipment, fully meet the requirements of projects on classified road, municipal road and freight yard.
XAP83 Asphalt Mixing Equipment performance characteristics
XAP83 Asphalt Mixing Equipment is an international advanced product developed independently for producing asphalt mixture, modified asphalt mixture, warm-mixing asphalt mixture and others at all levels and be used in supporting with hot recycling equipment and foam asphalt equipment, fully meet the requirements of projects on classified road, municipal road and freight yard.
* Reasonable drum heating zone and dialing claw layout greatly increase drying heating efficiency and reduce fuel consumption.
* The optimal combination of two-grade dust filter system which is established based on the simulation analysis could obtain best filter effect.
* High efficient vibratory screener, designed based on the simulation analysis and experiment test, has the optimal structure, best performance, realizes the efficient screening and ensures accurate gradation.
* Aggregate: establish the optimal aggregate weighing hopper through simulation analysis, at the same time, adopts" gross weighing + accurate weighing"combination weighing system, ensure high precision weighing.
* Asphalt: two-step weighing technology ensure accuracy of asphalt and aggregate ratio.
* Independent developed intelligent carry over compensation technology and expert database intelligent weighing technology greatly improve the accuracy of proportion precision by self-learning, datebase comparison, ensure correct gradation.
Products Description
hot selling 80T/H XAP83 asphalt mixing plant with 1.25ton per batch mixing capacity
Asphalt mixing station, also known as asphalt concrete mixing station, refers to the complete set of equipment used for mass production of asphalt concrete, which can produce asphalt mixture, modified asphalt mixture and color asphalt mixture. It is the necessary equipment for building expressways, grade highways, municipal roads, airports and ports.
Equipment composition:
It mainly consists of batching system, drying system, combustion system, hot material lifting, vibrating screen, hot material storage bin, weighing mixing system, asphalt supply system, powder supply system, dust removal system, finished product silo and control system.

1.More Efficient Production
Realize zero-speed start, high-speed hoist and low-speed stop, with high speed and small impact. Providing more reliable operation and better continuous production.

2.More Uniform Agitating
Features faster material cycle, more violent countercurrent and more uniform agitating. Greatly reducing cleaning intensity of labor.

3.More Comprehensive Customization
All-around and 3D environmental measures are taken to effectively control the pollution. Realize all-around control of people, vehicles, pumps and plants.
Specification

Equipment type		Unit	XAP83
Complete machine	Theoretical rated productivity (5% water content)	t/h	80
	Temperature accuracy	ºC	±5
	Total installed power	kW	260
	Length* width* height	m	29*26*16.5
	Floor area	m²	812
Cold hopper	Capacity	m³	4*9
Drying drum	Diameter	m	1.8
	Length	m	6.64
	Fuel		Diesel, heavy oil/ natural gas
	Drying ability (5% water content)	t/h	80
Dust collector	Bag filter area	m²	360
Main mixing building	Screen layers		4
	Screening area	m²	14.8
	Capacity of hot aggregate silo	m³	12.4
	Weighing capacity of aggregate	kg	1500
	Weighing capacity of powder	kg	300
	Weighing capacity of bitumen	kg	130
	Mixing power	kW	2*18.5
	Mixer capacity	kg	1250
