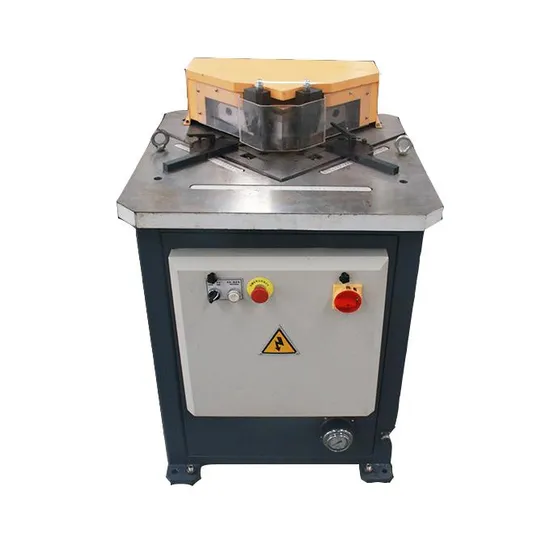

Automatic Hydraulic Press Angle Notching Machine for Metal Plate Cut 3mm Mild Steel

Product Description

Specification sheet

Model	XJS 3*160	XJSI 4*220	XJSI 6*220	XJS 4*250	XJS 6*250
Angel adjustable or not	No	YES	YES	NO	NO
Cutting Thickness of MS	0.5-3.0 mm	0.5-4.0 mm	0.5-6.0 mm	0.5-4.0 mm	0.5-6.0 mm
Cutting Thickness of SS	0.5-1.5mm	0.5-2.0mm	0.5-3.0mm	0.5-2.0mm	0.5-3.0mm
Max Cutting Radius	160mm	220mm	220mm	250mm	250mm
Cutting Angle	90°	45°-135°	45°-135°	90°	90°
Motor Power	1.5kw	3.0kw	4.0kw	4.0kw	4.0kw
Overall Size L*W*H (mm)	540*540*1180	890*870*1080	950*920*1150	910*760*1050	910*810*1050
Weight	230kg	860kg	970kg	680kg	710kg
Max Cutting Thickness (450Mpa)	3mm	6mm	6mm	4mm	4mm
RPM/Rotary Speed of Main Motor	1440r/min	1440r/min	1440r/min	1440r/min	1440r/min

The data sheet is just for your reference. If you need more information, please feel free to contact with us.
PACKAGE & SHIPMENT
ABOUT US JIANGSU XINMECHAN TECHNOLOGY CO., LTD is a modern enterprise, running hydraulic press brake, CNC laser cutting machines, hydraulic shears, grooving machines, hydraulic angle notching machines and mechanical tools, blades and so on.
PRODUCT CATEGORY
Monument Strength
We are constantly involving in technique innovation and technical improvement to supply more advanced products for you. We had implemented the international quality system standards fully. Each process of production and delivery is in accordance with the requirements of national and industry standards as well as users need strictly. We can guarantee the products our customers received are of superior quality.
We have a group of knowledgeable and professional young team workers who are specialized in different subjects of mechanical industry, committed to serving for our customers. We can supply standard products as well as meet special order requirements of customers and provide an optimum plan for every user.
Service
Pre-sales services, supply customization
We provide customers with the best possible process solutions, technical advice, samples to test, model selection and other consulting service.
In-sale services, provide all aspects of technical support
We design tailor-made training programs for you, including equipment operation, product maintenance and maintenance, troubleshooting, safety operation and other aspects of training.
After-sales service perfectly and timely
We guarantee 10 hours to respond to customer demand, free maintenance during the warranty period, life-long maintenance, timely provision of spare parts, remote diagnosis, regular visits and other services.
FAQ
Q1: I know nothing about this machine, what kind of machine I should choose?
A1: Very easy. Just tell us the metal material and size, thickness of your metal sheet, then I will recommend you one suitable model.
Q2: When I get this machine, but I don't know how to use it. What should I do?
A2: We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or Whatsapp and e-mail or other online in-time APP.
Q3.How about your after-sales service?
If some problems happen to this machine during warranty period, what should I do?
A3: We offer you 24 hours service. We will supply free parts during machine warranty period if machine have some problems. While we also supply life long after-sales service. So any doubts, just let us know, we will give you the optimum solutions.
Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. Thecomplete machine will be tested to make sure they can work very well before being out of factory.
Our machines passed ISO, CE Certificate, meet European and American standard, were exported to more than 100 Countries.
Q5. How we pay you?
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price, shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment and 100% quality check before shipping.
F. Send your goods by sea.

---
