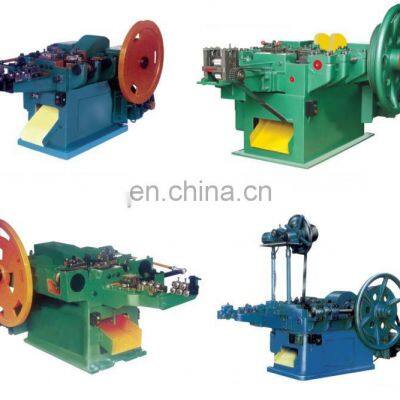

High recommended China leading and hot selling automatic wire nail making machine

Product Description

Product Description
High recommended China leading and hot selling automatic wire nail making machine Product Description
Features of common wire nail making machine:
Common wire nail making machine adopts plunger type structure to ensure its high working speed, low noise and low impact characteristics.
Especially the common wire nail making machine can also make high quality You Mao nails which are used for high speed welding machine and nail gun, and it can make
nails for other uses.
Both scrap and new wire steel can be used as material for common wire nail making machine.
Technical parameter of common wire nail making machine:

Model	SLZ94-1C	SLZ94-2C	SLZ94-3C	SLZ94-4C	SLZ94-5.5C
Max. dia. of nail	1.6mm	2.8mm	3.5mm	4.5mm	5.5mm
Min. dia. of nail	0.9mm	1.2mm	1.8mm	2.8mm	3.8mm
Max. Length of nail	25mm	50mm	75mm	100mm	150mm
Min. length of nail	9mm	16mm	30mm	50mm	80mm
Motor power	1.5kw	2.2kw	3kw	4kw	5.5kw
Nail making speed	450pcs/min	350pcs/min	320pcs/min	260pcs/min	200pcs/min
L*W*H	1.5*1.3*1.2m	1.7*1.3*1.4m	2.0*1.4*1.4m	2.2*1.6*1.65m	2.5*1.6*1.5m
Weight	1.2tons	1.45tons	1.8tons	2tons	2.3tons

Flow chart of China automatic nail making machine:
Scrap steel or new wire - wire darwing - nail making - nail polishing - end nails
Technical Parameter of China automatic nail making machine
1. Wire darwing machine is used to draw the wire to the fine dia we need.
Operational principle:
The pulley wire drawing machine consists of main reducer motor, mould case, guiding wheel frame and general electrical motor control system. the machine is droved by gears. The machine can automatically produce different specifications of products. The drawing pot work vertically. The rotational speed increases with the thinning and lengthening of the wire rods.
Suitable materials: low-carbon steel, copper, aluminum, etc.
Application:
The product is extensively used to produce standard parts (e.g. welding rod, wire nail, screw, etc.).
Advantages:
The machine has perfect electrical system, protection system, and water seal system, featured by easy combination, high production and convenient operation and management.
2. China automatic Nail making machine is used to make nails, We just need to put the wire into the entrance of nail machine, then it will finish making nails fully automatic.
3. Nail polishing machine is used to make the nails brightening.
4. Grinder is used to sharpen the nail cutter, to save cost
other model nials making machine :
