High Quality CNC Milling Machine Premium CNC Milling Machine

Product Description

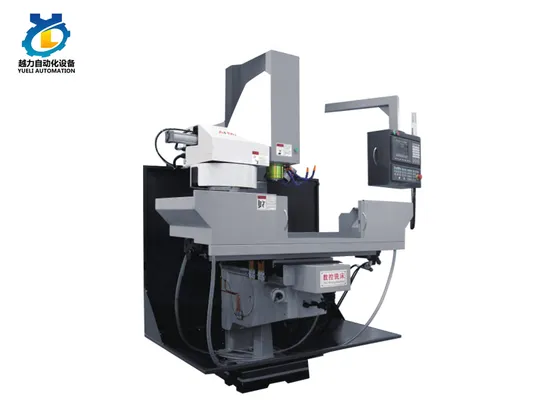

High Quality CNC Milling Machine
I.Technical Characteristics:
1.This machine tool is a versatile, high-precision, high-reliability digitally controlled machine tool that can automatically process planes, slopes, grooves, and special-shaped machining surfaces, as well as the main equipment for mass production and maintenance of parts.
2.Adopt Guangshu 980MDI/new generation 6MB-E dedicated system. Three-axis use linear guide, three-axis linkage, servo motor, all G functions and interpolation functions, all tool compensation functions, editing and storage functions, auxiliary functions, user macro programs, manual operation, LCD track display, large-scale data transmission, The machine can be directly controlled by a computer.
II.Technical Parameter:

Model	Unit	MX5S/MX5SL	MX4
Table length xtable width	mm	1470x320/1640x320	1570X320
T-slot size/Number		16MMX3
X-axis Servo travel	mm	900/1050	1020
Y-axis Servo travel	mm	340	350
Z-axis manual travel	mm	400	400
Guide form	Guide form	X/Y/Z axis rail line	X/Y/rail line/Z axis hard rail
Z-axis Servo travel	mm	400	100
Spindle taper		BT-40	R8
Max.spindle speed	rpm	8000	4500
Motor	kW	4	3.7
(X/Y/Z) 3 axis rapid feedrate	mm/min	10000	X/Y:10000/Z:8000
CNC controller		Taiwan Syntec System/Guangshu	Taiwan Syntec System/Guangshu
Positioning precision	mm	±0.005/300	±0.005/300
In dao way		12T door cover	Manual
Machine size	mm	1900x1650x2650	1900x1650x2650
Machine weight	kg	1800	1500

III.Detail Pictures:
IV.Package and Loading
our service:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity.
7.Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
our company:
Quanzhou Yueli Automation Equipment Co., Ltd was founded in 2013, which covers an area of 3000 square meters. The company is located at the China Plumb Town--Nanan, Fujian. It is a production enterprise lead by drilling tapping compound machine, drilling tapping centers and drilling tapping milling process center. The company is committed to serving various of industries such as sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, machine manufacturing and so on.
Quanzhou Yueli Automation Equipment Co., Ltd has developed from a simple assembly manufacturing industry to be a machining manufacturer which collects research and development, production, sales and service. It owns CNC gantry rail grinder machine, boring mill, milling, digging, polishing compound machine and other advanced test equipment. Our company product is from sales, service network throughout the China domestic market. They are exported to foreign countries and regions.
We continue to innovate and strive for perfection in our products. We are specialized at quality, focus on the spirit, dedicated service to acquire the perennial support and profound affection from our customers.
In the future, we will continue to pay attention to the needs of users, constantly improve the professional level, the quality of science and technology. Win the market with the quality. We are willing to join hands in creating our brilliant future.

---
