2-6 Lane Ice Cream Filling Machine/Packing Machine

US$45,000.00-70,000.00 1 Set (MOQ)

Basic Info.

Model NO.

BGJ-3A

Certification

CE, ISO9001

Power Source

Electric

Process

Frozen and Chilled

Automatic Grade

Automatic

Application

Ice Cream

Customized

Power

3p/380V/50Hz

Transport Package

Other

Specification

2.0

Trademark

Runyu

Origin

Jiangsu

HS Code

843800000

Production Capacity

20sets/Year

Product Description

Product Description
Application

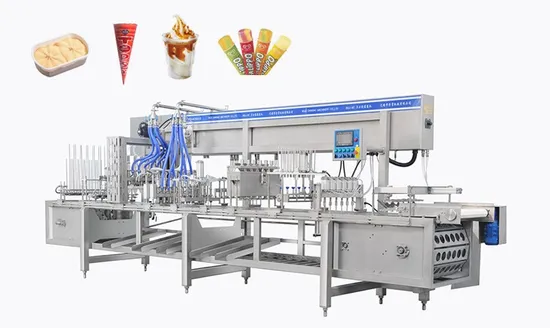

BGJ Series Ice-cream Filling Machine is intermittent-type linear-movement filling machine, which can fill ice-creams with multiple filling heads, it's a multifunctional filling equipment. This product is mainly used in producing cone ice-cream, cup ice cream and different garland and rotary ice-cream. Also, it can produce double-color, triple color ice-creams and add jam and chocolate on ice-creams as well as filling plane cutting products.
System
BGJ Series Ice-cream Filling Machines are equipped with stations of automatic cup falling, cup arranging, inner chocolate spraying, ice-cream filling, nuts sprinkling, jam adding, chocolate dripping, garland, cover adding, cover pressing(heat-sealing lid)and products sending out etc. We can also design special working stations according to the customers' requirements. This equipment adopts PLC computer control and touch screen, mechanical operation composed control to make it easy for adjusting and operation. The machines are with good shape, and it's convenient to clean. With the characteristic of large output and products are the same standards, it's now the advanced ice-cream filling equipment in China.
Capacity:
2 Lane--4300pcs/hour 3 Lane--6500pcs/hour
4 Lane--8500pcs/hour 6 Lane--13500pcs/hour
After sales service
1)Installation, commissioning, training service until the customer could use the machine independently
2)Experienced ice cream production manager attending service in customer's Production site
Detailed Photos
Product Parameters

No.	Parameters		Unit	BGJ-2A	BGJ-3A	BGJ-4A	BGJ-6D
1	Output	Filling speed	Piece/H	4300	6500	8500	13500
2	Output	Weight/piece	g	50-500g (Cone ice cream is 70g/piece)
3	Shape of filling container		--	Cone and wrapping paper ,regular -shape plastic or paper cups)
4	Power	Voltage	380	380	380v	380	380
5		Frequency	50	50	50	50	50
6	Total Power		3	3	3	3	3
7	Comprossor Air	Pressure	≥0.5	≥0.5	≥0.5	≥0.5	≥0.5
	Comprossor Air	Consumption	1-2	3-4	3-4	3-4	3-4
	Machine Weight		Ton	1.5	1.8	2.0	2.2
	Dimension (LxWxH)		mm	4000x1100x2100	4600x1200x2200	4600x1200x2200	6500x1500x2300
