US$0.10
|
1,000 Pieces
(MOQ)
|
Basic Info.
Application
Conduct Electricity
Character
Environmental Protection
Production Process
Cold Pressing
Certification
UL, RoHS\Reach\ISO9001\IATF16949\Ts22163
Transport Package
Standard
Production Capacity
1000000PCS/Year
Packaging & Delivery
Package Size
18.50cm * 14.50cm * 10.20cm
Package Gross Weight
8.500kg
Product Description
DIN46234 cable lugs are suitable for the connection of copper conductors (section 1.5-630mm2) in power cable with electronic equipment, they are made of higher 99.99 % pure copper tube T2 and coated with tin. Working temperature -55oC-150oC.
The company has more than 95% of the full automatic production lines, nissan 200 tons, production capacity continues to adjust and expand, to meet the challenge of the market at any time.
Through the European CE safety certification, American UL safety certification, the company has a SC Japan JIS standard, the German DIN standards, AWG American standards, etc.
Companies always adhere to: quality first, service first, from raw materials into the factory inspection, process inspection to every working procedure, outbound packaging cengcengbaguan .
Company has own copper pipe, copper strip, copper platoon of raw material processing factory, with strong competitive advantage price on equal quality to every guest get the maximum benefits.
Material: High Conductivity Copper
Purity: >99.9%
Coating: Acid washing Our Advantages
company introduction
Various qualification certificates
Applications of copper tube terminals
Manner of packing
Product picture

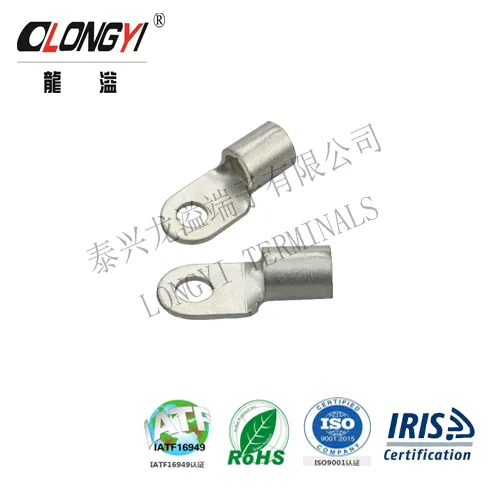

NON-INSULATED RING TERMINALS DIN46234
| PART NO | ITEM NO | WIRE RANGE | DIMENSIONS |
| AWG/MCM | mm 2 | ΦE | Φd | W | B | L1 | T | L |
| LY0020-1001 | 2-0.5 | 26-22 | 0.2-0.5 | 2.2 | 1.0 | 5.0 | 4.0 | 10.00 | 0.5 | 12.5 |
| LY0020-1002 | 2.5-0.5 | 2.7 | 5.0 | 10.00 | 12.5 |
| LY0020-1003 | 3-0.5 | 3.2 | 5.0 | 10.00 | 12.5 |
| LY0020-1004 | 3.5-0.5 | 3.7 | 6.0 | 12.00 | 15.0 |
| LY0020-1005 | 4-0.5 | 4.3 | 6.5 | 12.00 | 15.3 |
| LY0020-1006 | 5-0.5 | 5.3 | 8.0 | 12.00 | 16.0 |
| LY0020-1007 | 2.5-1 | 22-16 | 0.5-1.5 | 2.7 | 1.6 | 6.0 | 5.0 | 11.00 | 0.8 | 14.0 |
| LY0020-1008 | 3-1 | 3.2 | 6.0 | 11.00 | 14.0 |
| LY0020-1009 | 3.5-1 | 3.7 | 6.0 | 11.00 | 14.0 |
| LY0020-1010 | 4-1 | 4.3 | 8.0 | 12.00 | 16.0 |
| LY0020-1011 | 5-1 | 5.3 | 10.0 | 13.00 | 18.0 |
| LY0020-1012 | 3-2.5 | 16-14 | 1.5-2.5 | 3.2 | 2.3 | 6.0 | 5.0 | 11.00 | 0.8 | 14.0 |
| LY0020-1013 | 3.5-2.5 | 3.7 | 6.0 | 11.00 | 14.0 |
| LY0020-1014 | 4-2.5 | 4.3 | 8.0 | 12.00 | 16.0 |
| LY0020-1015 | 5-2.5 | 5.3 | 10.0 | 14.00 | 19.0 |
| LY0020-1016 | 6-2.5 | 6.5 | 11.0 | 16.00 | 21.5 |
| LY0020-1017 | 8-2.5 | 8.4 | 14.0 | 17.00 | 24.0 |
| LY0020-1018 | 4-6 | 12-10 | 4-6 | 4.3 | 3.6 | 8.0 | 6.0 | 14.00 | 1.0 | 18.0 |
| LY0020-1019 | 5-6 | 5.3 | 10.0 | 15.00 | 20.0 |
| LY0020-1020 | 6-6 | 6.5 | 11.0 | 16.00 | 21.5 |
| LY0020-1021 | 8-6 | 8.4 | 14.0 | 19.00 | 26.0 |
| LY0020-1022 | 10-6 | 10.5 | 18.0 | 21.00 | 30.0 |
| LY0020-1023 | 5-10 | 8 | 10 | 5.3 | 4.5 | 10.0 | 8.0 | 16.00 | 1.1 | 21.0 |
| LY0020-1024 | 6-10 | 6.5 | 11.0 | 17.00 | 22.5 |
| LY0020-1025 | 8-10 | 8.4 | 14.0 | 20.00 | 27.0 |
| LY0020-1026 | 10-10 | 10.5 | 18.0 | 21.00 | 30.0 |
| LY0020-1027 | 12-10 | 13.0 | 22.0 | 23.00 | 34.0 |
| LY0020-1028 | 5-16 | 6 | 16 | 5.3 | 5.8 | 11.0 | 10.0 | 20.00 | 1.2 | 25.5 |
| LY0020-1029 | 6-16 | 6.5 | 11.0 | 20.00 | 25.5 |
| LY0020-1030 | 8-16 | 8.4 | 14.0 | 22.00 | 29.0 |
| LY0020-1031 | 10-16 | 10.5 | 18.0 | 24.00 | 33.0 |
| LY0020-1032 | 12-16 | 13.0 | 22.0 | 26.00 | 37.0 |
| LY0020-1033 | 5-25 | 4 | 25 | 5.3 | 7.5 | 12.0 | 11.0 | 25.00 | 1.5 | 31.0 |
| LY0020-1034 | 6-25 | 6.5 | 12.0 | 25.00 | 31.0 |
| LY0020-1035 | 8-25 | 8.4 | 16.0 | 25.00 | 33.0 |
| LY0020-1036 | 10-25 | 10.5 | 18.0 | 26.00 | 35.0 |
| LY0020-1037 | 12-25 | 13.0 | 22.0 | 31.00 | 42.0 |
| LY0020-1038 | 16-25 | 17.0 | 28.0 | 35.00 | 49.0 |
| LY0020-1039 | 6-35 | 2 | 35 | 6.5 | 9.0 | 15.0 | 12.0 | 26.00 | 1.6 | 33.5 |
| LY0020-1040 | 8-35 | 8.4 | 16.0 | 26.00 | 34.0 |
| LY0020-1041 | 10-35 | 10.5 | 18.0 | 27.00 | 36.0 |
| LY0020-1042 | 12-35 | 13.0 | 22.0 | 31.00 | 42.0 |
| LY0020-1043 | 16-35 | 17.0 | 28.0 | 36.00 | 50.0 |
| LY0020-1044 | 6-50 | 1/0 | 50 | 6.5 | 11.0 | 18.0 | 16.0 | 34.00 | 1.8 | 43.0 |
| LY0020-1045 | 8-50 | 8.4 | 18.0 | 34.00 | 43.0 |
| LY0020-1046 | 10-50 | 10.5 | 18.0 | 34.00 | 43.0 |
| LY0020-1047 | 12-50 | 13.0 | 22.0 | 36.00 | 47.0 |
| LY0020-1048 | 16-50 | 17.0 | 28.0 | 40.00 | 54.0 |
| LY0020-1049 | 6-70 | 2/0 | 70 | 6.5 | 13.0 | 22.0 | 18.0 | 38.00 | 2.0 | 49.0 |
| LY0020-1050 | 8-70 | 8.4 | 22.0 | 38.00 | 49.0 |
| LY0020-1051 | 10-70 | 10.5 | 22.0 | 38.00 | 49.0 |
| LY0020-1052 | 12-70 | 13.0 | 22.0 | 38.00 | 49.0 |
| LY0020-1053 | 16-70 | 17.0 | 28.0 | 42.00 | 56.0 |
| LY0020-1054 | 8-95 | 3/0 | 95 | 8.4 | 15.0 | 24.0 | 20.0 | 42.00 | 2.5 | 54.0 |
| LY0020-1055 | 10-95 | 10.5 | 24.0 | 42.00 | 54.0 |
| LY0020-1056 | 12-95 | 13.0 | 24.0 | 42.00 | 54.0 |
| LY0020-1057 | 16-95 | 17.0 | 28.0 | 44.00 | 58.0 |
| LY0020-1058 | 8-120 | 4/00 | 120 | 8.4 | 16.5 | 24.0 | 22.0 | 44.00 | 3.0 | 56.0 |
| LY0020-1059 | 10-120 | 10.5 | 24.0 | 44.00 | 56.0 |
| LY0020-1060 | 12-120 | 13.0 | 24.0 | 44.00 | 56.0 |
| LY0020-1061 | 16-120 | 17.0 | 28.0 | 48.00 | 62.0 |
| LY0020-1062 | 10-150 | 250/300 | 150 | 10.5 | 19.0 | 30.0 | 24.0 | 50.00 | 3.2 | 65.0 |
| LY0020-1063 | 12-150 | 13.0 | 30.0 | 50.00 | 65.0 |
| LY0020-1064 | 16-150 | 17.0 | 30.0 | 50.00 | 65.0 |
| LY0020-1065 | 10-185 | 300/350 | 185 | 10.5 | 21.0 | 36.0 | 28.0 | 50.00 | 3.5 | 68.0 |
| LY0020-1066 | 12-185 | 13.0 | 36.0 | 50.00 | 68.0 |
| LY0020-1067 | 16-185 | 17.0 | 36.0 | 50.00 | 68.0 |
| LY0020-1068 | 10-240 | 400/450 | 240 | 10.5 | 23.5 | 38.0 | 32.0 | 56.00 | 4.0 | 75.0 |
| LY0020-1069 | 12-240 | 13.0 | 38.0 | 56.00 | 75.0 |
| LY0020-1070 | 16-240 | 17.0 | 38.0 | 56.00 | 75.0 |
>>
