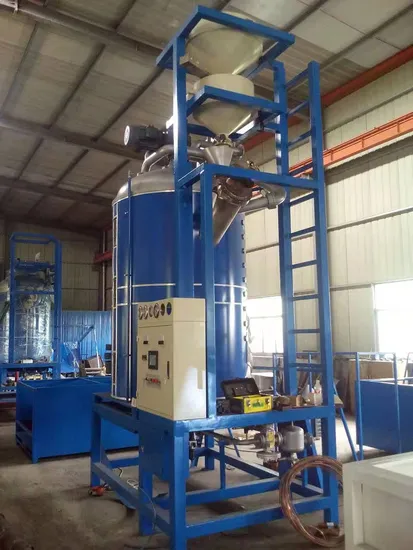

EPS Pre-Expander Machine with Good Quality

Product Description

Main Features: 1. EPS pre expander use Mitsubishi PLC and Winview touch screen to control whole working automatically;
2. EEPS pre expander use vacuum system to convey raw material from bottom to top loader, no blocking material hose and no breaking EPS beads;
3. Machine first expansion and second expansion both uses PT650 electronic weighing meter to control weighing, accuracy to 0.1g;
4. EPS pre expander uses Japanese Pressure Reducing Valve to ensure stable steam input;
5. EPS pre expander with preheating and main steaming. Using small valve to do preheating till certain temperature then do main heating, so material can be expanded properly;
6. Machine control steam and air pressure properly inside expansion chamber, material density tolerance lower than 3%;
7. Machine agitating shaft and inner expansion chamber are all made of SS304;
8. Steam proportional vale, air proportional valve and Korean vibration sensor are optional.

TECHNICAL DATA
Item		PSY-70	PSY-90	PSY-120
Expansion Chamber	Diameter Volume Useable volume	Φ 700mm 0.6 m³ 0.4m³	Φ 900mm 1.2 m³ 0.8m³	Φ 1200mm 2.2m³ 1.5m³
Steam	Entry Consumption Pressure	DN20 80-100kg/cycle 0.6-0.8MPa	DN40 100-150kg/cycle 0.6-0.8MPa	DN40 150-200kg/cycle 0.6-0.8MPa
Compressed Air	Entry Pressure	DN15 0.6-0.8MPa	DN20 0.6-0.8MPa	DN20 0.6-0.8MPa
Drainage	Condensate	Φ 20mm	Φ 20mm	Φ 20mm
Throughout	15g/l 20g/l 25g/l 30g/l	100g/l 120g/l 150g/l 200g/l	150g/l 200g/l 250g/l 300g/l	250g/l 300g/l 410g/l 500g/l
Material Conveying Line		Φ 150mm	Φ 150mm	Φ 150mm
Connected Load		8.93Kw	9.73Kw	13.33Kw
Density	First expansion Second expansion	12-30g/l 8-11g/l	12-30g/l 8-11g/l	14-30g/l 8-13g/l
Overall Dimension	(L*W*H)	4700*2660*2600(mm)	4700*2930*3200(mm)	4905*4655*3250(mm)
Weight		1300kg	1500kg	1800kg
Room Height Required		3000mm	3000mm	3000mm

Machines in Customers'factories
We have machines in America,Romania,Ukrain,Uzbekstan,Mexico,Malta,Russia,Indonesia,Malaysia,India etc.We have EPS sample factories in Indonesia,India,Uzbekstan,Turkey,Malta,Bulgaria,Russia etc.
Our Company:
Hangzhou Fuyang Wealth Imp&Exp Co.,Ltd is a company specially dealing with EPS machines, molds and spare parts. Having strong technical team, we help clients to design their new factory and supply whole turn-key project to them, also we help old EPS factories to improve their production by reducing energy consumption and increasing production capacity. Apart from that, we offer the service of designing.

---
