Made in China Film Polyretec Standard Package Single Shaft Drum Shredder

Product Description

Product Description
The PTSW series shredders are single shaft shredders with a large internal volume. The redesigned hydraulic pusher system creates about 35% more space in the cutting chamber while increasing the power and speed of the ram itself. The machines are equipped with a 480mm diameter WANROOETECH rotor with widths ranging from 2000mm. As on the PTSW machines the rotor is driven via two oversized BONENG gearboxes. The completely closed welded steel housing increases the stability and avoids material spillage. The PTSW inherits all of the advantages of the Polytech knife and knife holder design as well as standard features such as outboard bearings, hydraulic screen cradle, it's easy maintainability and advanced controls.
Detailed Photos

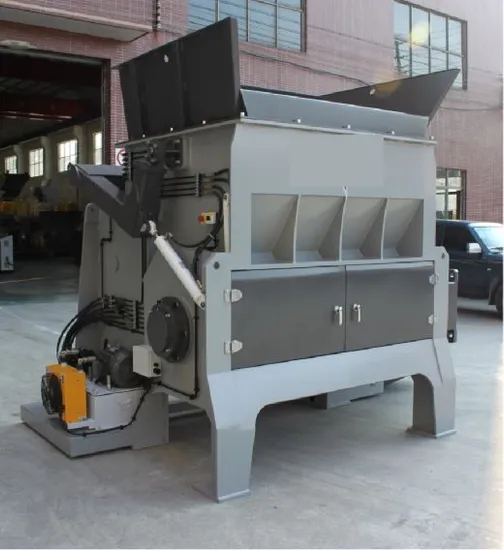

Machine photo:
Parts:
Rotated blades:
Fixed blades:Application material:
Plastics - Mouldings, Purging/Lump, Profiles, Films, etc. Timber/Wood - Pallets, Joiners Waste, Green Waste, etc. Paper & Cardboard - Confidential Documents, Production Waste, Packaging Materials, etc. Copper Cable - Household, Telecoms, and Industrial Cables including S.W.A Aluminum - Used Beverage Cans (UBCs), Swarf, Cables, etc. Textiles - Carpet (Rolls & Tiles), Garments, etc. Security Destruction - Counterfeit Items, Faulty Goods, Out of Date Stock, etc. Foam - Production Waste, etc. Mixed Household & Commercial Waste - RDF/SRF Production Product Parameters
Parameter:

Model	PTSW1500	PTSW2000
Dimension(L*W*H)mm	2230*3660*2970	2230*3710*2970
Hopper opening(L*H)mm	1360*1910	1360*2410
Discharge height(mm)	460	460
Rotation diameter(mm)	Φ465	Φ465
Operation length(mm)	1500	2000
Rotation speed(RPM)	80	80
Swing pusher ram(mm)	420	420
Screen hole size(mm)	60	60
Rotated blades number	88	95
Fixed blades number	6	8
Motor power(kw)	110	75+75
Hydraulic power(kw)	11	11
Weight(kg)	12500	15000

Our Advantages
Energy Efficient + Maximum Cutting Force & Productivity Shock Absorbing Gearbox reduces Stress on Drive Components Rotor Knives can be rotated and used on several edges before replacement. Long Life Counter Knives can be used on two edges and adjusted to maintain cutter clearance Quick Change Screens for accurate particle size control Swing Ram Pusher with exchangeable PU Slides Quick access to the rotor via the rear chamber access door Twin Speed Hydraulics with integrated air cooler Stand Alone Electrical Control Panel with Siemens PLC Control System Tested, Approved and Certified to the applicable CE safety standards Our strengths and improvements
1. Use Siemens/WEG motor to improve power utilization efficiency
2. The bearings adopt the internationally renowned brand NSK
3. The bearing adopts a sealed design to prevent dust from entering and greatly extend the bearing life.
4. The machine uses integral cutting steel plates to reduce welds and greatly enhance the strength and life of the machine.
5. The machine has an overload protection system to protect the motor
6. Use double-sided blades for suitable materials, and the life of the fixed blades and rotated blades will be at least doubled.
7. For hot areas, the hydraulic station adopts water-cooling to ensure the continuous and stable operation of the machine and prevent the hydraulic station from shutting down due to excessive temperature.
8.For blades material,use authenticated D2 material,High hardness and durability
