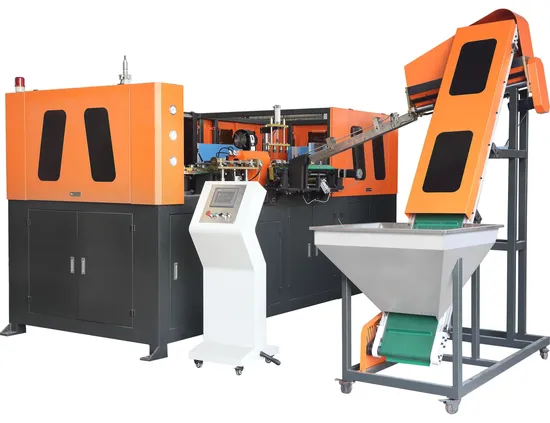

Plastic Water Bottle Making Machinery (BM-A4)

Product Description

Plastic Water Bottle Making Machinery
1), Water Bottle Making Machinery
2), material: PET
3), full-automatic
4), output: 4000-5000pcs/hour
5), 4 cavity
Machine Features:
1. Stable performance with advanced PLC.
2. Conveying preforms automatically with conveyor.
3. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
4. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area and eternal temperature in the preheater with an automatic thermostatic apparatus.
5. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
6. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
7. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
8. Strong clamping force with high pressure lock the mold.
9. Two ways of operating: Automatic and manual.
10. Safe, reliable and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
11. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
12. Contamination is avoided for the bottle body.
13. Ideal effect of the chilling with the chilling system.
14. Easy installation and starting.
15. Low rejection rate: Less than 0.2 percent. Machine
Components:
1. Japan SMC and AIR TAC air cylinder (clamping, stretching)
2. Japan SMC motion valve
3. Japan MITSUBISHI PLC

	ITEM	UNIT	BM-A2	BM-A4	BM-A6
Machine	Clamping force	Kn	1500	2000		2500
	Clamping stroke	mm	230	230		230
	Stretching stroke	mm	370	370		370
	Bottom stroke	mm	70	70		70
	Number of cavities	Cavity	2	4		6
Container	Max. container volume	ltr	2L	2L		2L
	Max Neck diameter	mm	50	50		50
	Max .container diameter	mm	200	200		200
	Max. container height	mm	330	330		330
	Theoretical output	bph	1600-2000	3000-4000		4000-5000
Electrical System	Total power	KW	25	35		40
	Heating power	KW	15	25		30
	Power supply	380-110V/60-50HZ
	Power consumption	KW/H	15(0.5L)	22(0.5L)		28 (0.5L)
Air system	Operating pressure	Mpa	0.8	0.8		0.8
	Low pressure consumption	L/min	600(0.5L)	1000(0.5L)		1300 (0.5L)
	Blowing pressure	Mpa	3.0	3.0		3.0
	High pressure consumption	L/min	1000(0.5L)	2000(0.5L)		3000(0.5L)
Machine size	Main machine(L×W×H)	cm	230*140*180	360*170*180		500*190*200
	Preform auto-loader	cm	115*95*185	115*95*185		115*95*185
	Machine weight	Kg	2000	3000		4000

---
